Convert DWG To Shapefile In ArcGIS: A Step-by-Step Guide

by Fonts Packs 57 views
Free Fonts

Hey guys! Ever found yourself needing to convert those pesky DWG files into shapefiles within ArcGIS? It's a common task, especially when you're dealing with CAD data and want to bring it into the GIS world for analysis, visualization, or further processing. In this article, I'm going to walk you through the ins and outs of converting DWG to shapefile using ArcGIS. Trust me, it's not as daunting as it sounds!

Understanding the Basics

Before we dive into the how-to, let's quickly cover the what and why. DWG (Drawing) files are the native file format for AutoCAD, a widely used CAD (Computer-Aided Design) software. These files typically contain 2D and 3D design data, like building plans, infrastructure layouts, and engineering designs. On the other hand, shapefiles are a popular geospatial vector data format used in GIS (Geographic Information Systems) applications like ArcGIS. They store geometric locations and attribute information for geographic features.

Why convert DWG to shapefile? Well, there are several reasons:

  • GIS Compatibility: Shapefiles are directly compatible with ArcGIS and other GIS software, allowing you to integrate CAD data into your GIS projects.
  • Spatial Analysis: Once in shapefile format, you can perform spatial analysis, such as buffering, overlay analysis, and proximity analysis, on your CAD data.
  • Data Management: Shapefiles can be easily managed, edited, and shared within a GIS environment.
  • Visualization: You can create maps and visualizations using your CAD data in ArcGIS, combining it with other geospatial datasets.

Step-by-Step Guide to Converting DWG to Shapefile in ArcGIS

Alright, let's get down to the nitty-gritty. Here's a detailed, step-by-step guide on how to convert DWG to shapefile in ArcGIS. I'll break it down into manageable chunks so it's super easy to follow.

Step 1: Add the DWG Data to ArcGIS

First things first, you need to bring your DWG data into ArcGIS. There are a couple of ways to do this:

  1. Using ArcCatalog: Open ArcCatalog, navigate to the folder containing your DWG file, and drag it into your ArcMap table of contents. This will add the DWG file as a CAD drawing dataset.
  2. Using the Add Data Button: In ArcMap, click the "Add Data" button (the plus sign icon) and browse to your DWG file. Select it and click "Add".

When you add a DWG file, ArcGIS recognizes it as a collection of feature classes, such as points, polylines, and polygons. Each of these feature classes represents a different type of geometric entity in the DWG file. You'll see them listed in the table of contents.

Step 2: Explore the DWG Data

Before you jump into converting, it's a good idea to explore the DWG data to understand its structure and content. Right-click on each feature class in the table of contents and select "Open Attribute Table". This will show you the attributes associated with each feature.

Pay attention to the following:

  • Layer Names: DWG layers are often used to organize different types of features. Understanding the layer names can help you decide which feature classes to convert.
  • Attribute Information: Check if the attributes contain useful information that you want to preserve in your shapefile.
  • Geometry Types: Verify that the geometry types (point, polyline, polygon) are what you expect.

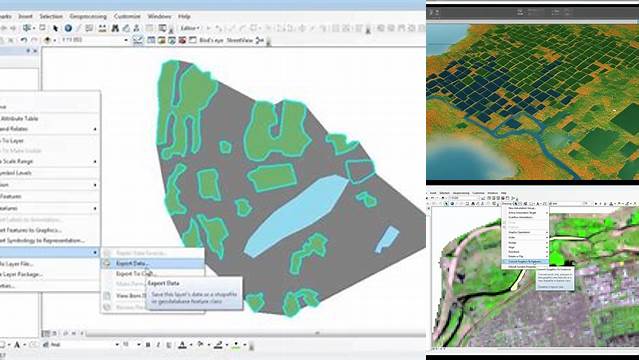

Step 3: Convert DWG Feature Classes to Shapefiles

Now comes the main part: converting the DWG feature classes to shapefiles. ArcGIS provides several tools for this, but the most common and straightforward method is using the "Feature Class to Feature Class" tool.

  1. Open the "Feature Class to Feature Class" Tool: Go to ArcToolbox > Conversion Tools > To Geodatabase > Feature Class to Feature Class.
  2. Input Features: In the tool dialog, select the DWG feature class that you want to convert from the "Input Features" dropdown list. This will be one of the feature classes listed under your DWG file in the table of contents.
  3. Output Location: Specify the output geodatabase or folder where you want to save the shapefile. If you don't have a geodatabase, you can create a new one in ArcCatalog.
  4. Output Name: Give your shapefile a name. Make sure the name is descriptive and follows the shapefile naming conventions (e.g., no spaces or special characters).
  5. Optional Settings:
    • Expression: You can use the "Expression" parameter to filter the features that are converted based on an attribute query. For example, you might only want to convert features from a specific layer.
    • Field Map: The "Field Map" parameter allows you to rename, delete, or modify the attributes that are transferred to the shapefile. This is useful if you want to clean up the attribute table or change field names.
  6. Run the Tool: Click "OK" to run the tool. ArcGIS will convert the DWG feature class to a shapefile and save it in the specified location.

Repeat this process for each DWG feature class that you want to convert. Remember to give each shapefile a unique name and choose the appropriate output location.

Step 4: Verify the Converted Shapefiles

After converting the DWG feature classes, it's important to verify that the shapefiles were created correctly. Here's how:

  1. Add the Shapefiles to ArcMap: Add the newly created shapefiles to your ArcMap table of contents by dragging them from ArcCatalog or using the "Add Data" button.
  2. Check the Geometry: Make sure the geometry of the features looks correct. Zoom in and inspect the lines, polygons, and points to ensure they are properly aligned and shaped.
  3. Examine the Attribute Table: Open the attribute table of each shapefile and verify that the attributes were transferred correctly. Check for missing values, incorrect data types, or any other issues.

If you find any errors or inconsistencies, you may need to adjust the conversion settings or edit the shapefiles manually.

Advanced Tips and Tricks

Okay, now that you've got the basics down, let's talk about some advanced tips and tricks that can make your DWG to shapefile conversions even smoother.

Handling Coordinate Systems

One of the most common issues when converting DWG to shapefile is dealing with coordinate systems. DWG files often don't have a defined coordinate system, or the coordinate system might be different from the one you're using in ArcGIS.

Here's how to handle coordinate systems:

  • Define the Coordinate System: If the DWG file doesn't have a defined coordinate system, you'll need to define it using the "Define Projection" tool in ArcToolbox (Data Management Tools > Projections and Transformations > Define Projection). You'll need to know the correct coordinate system for the DWG data.
  • Project the Shapefile: If the DWG file and your ArcGIS project use different coordinate systems, you'll need to project the shapefile to match your project's coordinate system. Use the "Project" tool in ArcToolbox (Data Management Tools > Projections and Transformations > Feature > Project).

Dealing with Complex DWG Files

Some DWG files can be quite complex, with nested layers, blocks, and other advanced features. This can make the conversion process more challenging.

Here are some tips for dealing with complex DWG files:

  • Simplify the DWG File: If possible, simplify the DWG file in AutoCAD before converting it to a shapefile. Remove unnecessary layers, blocks, and other complex features.
  • Use the "CAD to Geodatabase" Tool: The "CAD to Geodatabase" tool (Conversion Tools > To Geodatabase > CAD to Geodatabase) can be useful for converting complex DWG files. This tool converts the entire DWG file to a geodatabase feature dataset, preserving the layer structure and other CAD-specific properties.
  • Explore Different Conversion Options: ArcGIS offers several other tools for converting CAD data, such as the "Import CAD Drawing" tool and the "Append" tool. Experiment with different tools to see which one works best for your specific DWG file.

Cleaning Up the Shapefile

After converting the DWG file, you may need to clean up the shapefile to remove unwanted features, correct errors, or optimize the geometry.

Here are some common cleanup tasks:

  • Deleting Unwanted Features: Use the "Editor" toolbar in ArcMap to delete any features that you don't need.
  • Correcting Geometry Errors: Use the "Check Geometry" and "Repair Geometry" tools in ArcToolbox (Data Management Tools > Features) to identify and fix geometry errors, such as self-intersections and invalid rings.
  • Simplifying Geometry: Use the "Simplify Line or Polygon" tool in ArcToolbox (Data Management Tools > Features) to simplify the geometry of lines and polygons, reducing the file size and improving performance.

Conclusion

Converting DWG to shapefile in ArcGIS is a fundamental skill for anyone working with CAD and GIS data. By following the steps outlined in this guide, you can seamlessly integrate your CAD data into your GIS projects and unlock its full potential for analysis, visualization, and data management. Remember to pay attention to coordinate systems, handle complex DWG files with care, and clean up your shapefiles to ensure data quality. Happy mapping, folks!
