CO2 Laser Cutting Machine: Your Complete Guide

Hey guys! Ever wondered how those intricate designs on wood, acrylic, or fabric are made with such precision? The answer often lies in the magic of a CO2 laser cutting machine. These incredible devices are revolutionizing various industries, from manufacturing and signage to crafting and education. In this comprehensive guide, we'll dive deep into the world of CO2 laser cutting machines, exploring their workings, applications, benefits, and everything else you need to know. So, buckle up and get ready to have your mind blown by the power of light!

What is a CO2 Laser Cutting Machine?

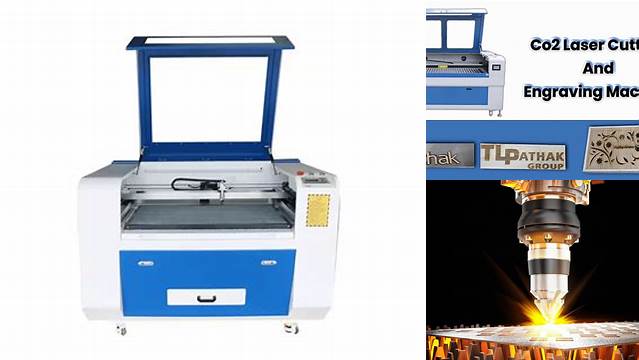

Let's start with the basics. A CO2 laser cutting machine is a type of laser cutting system that utilizes a carbon dioxide (CO2) laser to precisely cut and engrave materials. These machines are renowned for their versatility and ability to work with a wide range of non-metallic materials, including wood, acrylic, leather, fabric, paper, and even some plastics. The CO2 laser beam, generated by electrically stimulating a gas mixture primarily composed of carbon dioxide, is focused through a lens onto the material's surface. This focused beam delivers intense heat, causing the material to vaporize, melt, or burn away, leaving behind a clean and precise cut or engraving. The process is controlled by computer software, allowing for intricate designs and patterns to be created with remarkable accuracy.

The technology behind CO2 laser cutting machines is quite fascinating. The laser beam itself is produced within a sealed tube filled with the CO2 gas mixture. When an electrical current is passed through the gas, it excites the CO2 molecules, causing them to emit photons (light particles) at a specific wavelength (typically 10.6 micrometers, which falls within the infrared spectrum). This light is then reflected between mirrors within the tube, amplifying its power and forming a coherent laser beam. This powerful beam is then directed out of the tube and focused onto the material being cut. The precision is achieved by carefully controlling the movement of the laser head and the intensity of the laser beam, all guided by the computer-aided design (CAD) software. This intricate dance of light and technology allows for the creation of incredibly detailed and complex designs with ease.

The use of CO2 lasers in cutting machines offers several significant advantages. First and foremost is their versatility. Unlike some other laser cutting technologies that are limited to specific materials, CO2 lasers can handle a broad spectrum of materials, making them ideal for diverse applications. Second, the cuts produced by CO2 lasers are exceptionally clean and precise, often eliminating the need for secondary finishing processes. This precision is crucial for intricate designs and applications where tight tolerances are essential. Third, CO2 laser cutting is a non-contact process, meaning the laser beam doesn't physically touch the material. This eliminates the risk of material distortion or damage, which can occur with traditional cutting methods. Finally, the speed and efficiency of CO2 laser cutting make it a cost-effective solution for both small-scale and large-scale production runs. All these factors combine to make CO2 laser cutting machines a powerful tool for a wide range of industries and applications.

How Does a CO2 Laser Cutting Machine Work?

The operation of a CO2 laser cutting machine might seem like magic, but it's actually a beautifully engineered process. Let's break down the key components and steps involved:

1. Laser Tube: This is the heart of the machine, where the CO2 laser beam is generated. As mentioned earlier, the tube is filled with a gas mixture, and an electrical current excites the CO2 molecules to produce the laser light.
2. Power Supply: The power supply provides the necessary electrical energy to excite the gas mixture within the laser tube. It controls the intensity of the laser beam, which is crucial for cutting different materials and thicknesses.
3. Mirrors: A series of mirrors are strategically positioned within the machine to reflect and direct the laser beam along the desired path. These mirrors are highly reflective and precisely aligned to ensure minimal energy loss and accurate beam delivery.
4. Lens: The lens is a critical component that focuses the laser beam into a tiny, intense spot on the material's surface. The focal length of the lens determines the spot size and depth of focus, which affects the cutting precision and quality.
5. Cutting Bed: This is the work area where the material to be cut is placed. The cutting bed can be a flat surface or a honeycomb structure, depending on the application. Some machines also have automated material feeding systems for continuous production.
6. Motion System: The motion system controls the movement of the laser head along the X and Y axes, guiding the laser beam to create the desired cutting pattern. This system typically uses stepper motors or servo motors for precise and controlled movement.
7. Control System: The control system is the brain of the machine, interpreting the cutting design from the computer software and coordinating the movements of the laser head and the laser beam intensity. It allows users to adjust cutting parameters such as speed, power, and frequency.
8. Exhaust System: Cutting materials with a laser generates fumes and particles. The exhaust system removes these byproducts, ensuring a safe and clean working environment. It also helps to prevent the lens and mirrors from becoming contaminated.
9. Cooling System: CO2 lasers generate a significant amount of heat, which needs to be dissipated to prevent damage to the laser tube and other components. The cooling system, typically using water or a specialized coolant, circulates around the laser tube to regulate its temperature.

The cutting process itself is relatively straightforward. First, the user imports the design into the machine's control software, usually in a vector format such as SVG or DXF. The software then translates the design into a series of commands that control the movement of the laser head and the laser beam intensity. The material to be cut is placed on the cutting bed, and the laser beam is focused onto its surface. As the laser head moves along the cutting path, the focused beam vaporizes, melts, or burns away the material, creating the desired cut. The speed and power of the laser are carefully adjusted based on the material type, thickness, and desired cutting quality. The exhaust system continuously removes fumes and particles generated during the cutting process, and the cooling system maintains the optimal temperature of the laser tube.

The precision and efficiency of this process are truly remarkable. CO2 laser cutting machines can achieve cutting tolerances of just a few microns, allowing for incredibly intricate and detailed designs. The non-contact nature of the process eliminates the need for clamping or fixing the material, and the speed of the laser cutting process can significantly reduce production times compared to traditional cutting methods. This combination of precision, efficiency, and versatility makes CO2 laser cutting machines an invaluable tool for a wide range of industries and applications.

Applications of CO2 Laser Cutting Machines

The versatility of CO2 laser cutting machines makes them suitable for a vast array of applications across various industries. From industrial manufacturing to small-scale crafting, these machines are transforming the way we create and manufacture products. Let's explore some of the key applications:

1. Signage and Advertising: CO2 laser cutting is widely used in the signage industry to create custom signs, letters, logos, and displays from materials like acrylic, wood, and MDF. The precision and clean cuts achieved with laser cutting ensure professional-looking and high-quality signage.
2. Woodworking: Woodworkers love CO2 lasers for their ability to create intricate wood carvings, inlays, and cutouts. They are used for making furniture components, decorative items, personalized gifts, and even architectural models. The non-contact cutting process prevents wood from splintering or cracking, ensuring clean and precise results.
3. Textile and Apparel: The textile industry benefits greatly from CO2 laser cutting for cutting fabric, leather, and other materials used in clothing, upholstery, and accessories. Laser cutting allows for complex shapes and patterns to be cut quickly and accurately, and it can also be used for fabric marking and engraving.
4. Acrylic Fabrication: Acrylic is a popular material for laser cutting due to its ability to be cut cleanly and precisely. CO2 lasers are used to create acrylic displays, signage, awards, and components for various products. The laser cutting process produces smooth edges and minimizes the need for secondary finishing.
5. Paper and Cardboard: CO2 laser cutting is ideal for creating intricate paper and cardboard designs, such as invitations, greeting cards, packaging prototypes, and architectural models. The precision of the laser allows for delicate cuts and fine details to be achieved without tearing or damaging the material.
6. Electronics: In the electronics industry, CO2 lasers are used for cutting and engraving circuit boards, creating stencils for solder paste application, and marking electronic components. The precision and non-contact nature of the process make it suitable for working with sensitive electronic materials.
7. Automotive: The automotive industry utilizes CO2 laser cutting for various applications, including cutting interior trim components, creating gaskets and seals, and marking parts with serial numbers and logos. The accuracy and speed of laser cutting help to streamline manufacturing processes and improve product quality.
8. Medical Devices: CO2 lasers are employed in the medical device industry for cutting and engraving medical components, creating surgical guides and templates, and marking medical instruments. The precision and cleanliness of laser cutting are crucial in medical applications where hygiene and accuracy are paramount.
9. Education and Prototyping: CO2 laser cutting machines are increasingly used in educational institutions and maker spaces for teaching design and fabrication skills. They are also valuable tools for prototyping new products and creating customized parts for various projects.

These are just a few examples of the many applications of CO2 laser cutting machines. As technology advances, we can expect to see even more innovative uses for these versatile machines in the future. The ability to cut and engrave a wide range of materials with precision and speed makes CO2 laser cutting a valuable tool for a diverse range of industries and applications.

Benefits of Using a CO2 Laser Cutting Machine

Okay, so we've talked about what a CO2 laser cutting machine is and what it can do. But what are the actual benefits of using one? Why are so many businesses and individuals choosing this technology over traditional cutting methods? Let's delve into the key advantages:

1. Precision and Accuracy: This is arguably the biggest advantage of CO2 laser cutting. The focused laser beam can create intricate designs and precise cuts with tolerances of just a few microns. This level of accuracy is unmatched by most other cutting methods, making it ideal for applications where tight tolerances are critical.
2. Versatility: As we've already discussed, CO2 lasers can cut and engrave a wide range of materials, including wood, acrylic, fabric, leather, paper, and some plastics. This versatility makes them a valuable tool for businesses that work with diverse materials or need to switch between different projects frequently.
3. Clean and Smooth Cuts: The laser beam vaporizes or melts the material, resulting in clean and smooth cuts with minimal burrs or rough edges. This often eliminates the need for secondary finishing processes, saving time and labor costs.
4. Non-Contact Cutting: Unlike traditional cutting methods that involve physical contact between the cutting tool and the material, laser cutting is a non-contact process. This eliminates the risk of material distortion, damage, or contamination, especially for delicate or flexible materials.
5. Speed and Efficiency: CO2 laser cutting is a fast and efficient process, allowing for quick turnaround times and high-volume production. The speed of the laser beam and the ability to cut complex shapes in a single pass contribute to significant time savings.
6. Reduced Material Waste: The precision of laser cutting minimizes material waste, as the laser beam can cut very close to the edges of the material. This is particularly important for expensive materials, where reducing waste can lead to significant cost savings.
7. Automation: CO2 laser cutting machines are computer-controlled, allowing for automated operation and seamless integration with CAD/CAM software. This automation reduces the need for manual labor and minimizes the risk of human error.
8. Intricate Designs: Laser cutting can easily create intricate designs and complex shapes that would be difficult or impossible to achieve with traditional cutting methods. This opens up new possibilities for product design and customization.
9. Engraving Capabilities: In addition to cutting, CO2 lasers can also be used for engraving materials with text, logos, and intricate patterns. This adds another layer of versatility and allows for the creation of personalized and branded products.
10. Cost-Effectiveness: While the initial investment in a CO2 laser cutting machine can be significant, the long-term cost-effectiveness is often very high. The speed, efficiency, and reduced material waste associated with laser cutting can lead to substantial savings in labor, material, and production costs.

In summary, the benefits of using a CO2 laser cutting machine are numerous and compelling. From precision and versatility to speed and cost-effectiveness, these machines offer a powerful solution for a wide range of cutting and engraving applications. Whether you're a small business owner, a maker, or a large-scale manufacturer, a CO2 laser cutting machine can be a valuable asset for your operations.

Choosing the Right CO2 Laser Cutting Machine

So, you're convinced that a CO2 laser cutting machine is the right tool for your needs. That's awesome! But with so many different models and options available, how do you choose the right one? Don't worry, I've got you covered. Here are some key factors to consider when selecting a CO2 laser cutting machine:

1. Material Compatibility: The first and most important factor is the type of materials you plan to cut. While CO2 lasers are versatile, they are best suited for non-metallic materials like wood, acrylic, fabric, leather, and paper. If you need to cut metals, you'll need a different type of laser cutting machine, such as a fiber laser.
2. Cutting Area: The cutting area of the machine determines the maximum size of the materials you can work with. Consider the size of your typical projects and choose a machine with a cutting area that can accommodate them. It's always better to have a slightly larger cutting area than you think you'll need, as this will give you more flexibility in the future.
3. Laser Power: The laser power, measured in watts, determines the thickness and speed at which you can cut materials. Higher power lasers can cut thicker materials faster, but they also tend to be more expensive. Consider the thickness of the materials you'll be working with and choose a laser power that is appropriate for your needs.
4. Laser Tube Type: There are two main types of CO2 laser tubes: glass tubes and metal tubes. Glass tubes are more affordable but have a shorter lifespan and lower power output. Metal tubes are more expensive but offer higher power, longer lifespan, and better beam quality. If you plan to use the machine frequently and for demanding applications, a metal tube is a worthwhile investment.
5. Precision and Accuracy: Look for a machine with a high-quality motion system and control system to ensure precise and accurate cuts. The resolution of the machine, measured in DPI (dots per inch), is an indicator of its precision. A higher DPI indicates a more precise machine.
6. Software Compatibility: The machine should come with user-friendly software that is compatible with your design software. Make sure the software supports the file formats you typically use, such as SVG, DXF, and AI.
7. Cooling System: A reliable cooling system is essential to prevent overheating and damage to the laser tube. Water cooling systems are more efficient than air cooling systems, especially for higher power lasers.
8. Exhaust System: An effective exhaust system is crucial for removing fumes and particles generated during the cutting process. Make sure the machine has a strong exhaust fan and a suitable filtration system to ensure a safe and clean working environment.
9. Safety Features: Safety should be a top priority when working with lasers. Look for a machine with safety features such as interlocks, emergency stop buttons, and enclosed laser housing to prevent accidental exposure to the laser beam.
10. Budget: CO2 laser cutting machines range in price from a few thousand dollars to tens of thousands of dollars. Set a budget before you start shopping and try to find a machine that offers the best value for your money. Don't just focus on the initial purchase price; also consider the ongoing costs of maintenance, consumables, and repairs.

By considering these factors, you can narrow down your options and choose a CO2 laser cutting machine that meets your specific needs and budget. Remember to do your research, read reviews, and compare different models before making a final decision. Investing in the right machine will pay off in the long run with improved efficiency, quality, and productivity.

Safety Precautions When Using a CO2 Laser Cutting Machine

Alright guys, let's talk safety. CO2 laser cutting machines are powerful tools, and like any powerful tool, they need to be used with caution and respect. Lasers can be dangerous if not handled properly, so it's crucial to understand and follow safety precautions to prevent accidents and injuries. Here are some essential safety measures to keep in mind:

1. Eye Protection: Laser beams can cause serious eye damage, even with brief exposure. Always wear appropriate laser safety glasses or goggles that are specifically designed for the wavelength of your CO2 laser (typically 10.6 micrometers). These glasses will filter out the harmful laser light and protect your eyes.
2. Enclosed Laser Housing: Make sure the laser cutting machine has a fully enclosed housing that prevents the laser beam from escaping. Never operate the machine with the housing open or any safety interlocks disabled.
3. Interlocks: Safety interlocks are designed to automatically shut off the laser if the housing door is opened during operation. Test the interlocks regularly to ensure they are functioning correctly.
4. Emergency Stop Button: Familiarize yourself with the location of the emergency stop button and know how to use it in case of an emergency. The emergency stop button will immediately shut off the laser and all machine operations.
5. Material Compatibility: Only cut materials that are approved for use with CO2 lasers. Some materials, such as PVC and vinyl, release harmful fumes when laser-cut and should never be used. Always consult the material safety data sheet (MSDS) before cutting a new material.
6. Ventilation: Laser cutting generates fumes and particles that can be harmful to your health. Make sure the machine is connected to an effective exhaust system that vents the fumes outside. Work in a well-ventilated area to minimize exposure to airborne contaminants.
7. Fire Safety: Laser cutting can ignite flammable materials. Keep a fire extinguisher nearby and be prepared to use it in case of a fire. Never leave the machine unattended while it is operating.
8. Regular Maintenance: Perform regular maintenance on the machine to ensure it is functioning properly and safely. Check the laser tube, mirrors, and lenses regularly and clean them as needed. Replace any worn or damaged parts promptly.
9. Training: Before operating a CO2 laser cutting machine, receive proper training from a qualified instructor. Understand the machine's operation, safety procedures, and troubleshooting techniques.
10. Personal Protective Equipment (PPE): In addition to laser safety glasses, wear other appropriate PPE, such as gloves and a dust mask, when operating the machine. This will protect your skin and respiratory system from fumes and particles.

By following these safety precautions, you can minimize the risks associated with CO2 laser cutting and ensure a safe working environment. Remember, safety is always the top priority when working with lasers. Take the time to learn and follow safety procedures, and you can enjoy the many benefits of CO2 laser cutting without putting yourself or others at risk.

The Future of CO2 Laser Cutting Machines

The field of CO2 laser cutting technology is constantly evolving, with ongoing innovations and advancements that promise to further enhance the capabilities and applications of these machines. So, what does the future hold for CO2 laser cutting? Let's take a peek into some of the exciting trends and developments:

1. Increased Power and Speed: Manufacturers are continuously working to develop higher-power CO2 lasers that can cut thicker materials faster. This will lead to increased productivity and efficiency in various industries.
2. Improved Beam Quality: Advancements in laser tube technology and optics are resulting in improved beam quality, which translates to more precise and cleaner cuts. This is particularly important for applications where fine details and tight tolerances are required.
3. Automation and Robotics: Integration of automation and robotics into CO2 laser cutting systems is becoming increasingly common. This includes automated material loading and unloading, as well as robotic arms for part handling and positioning. These advancements will further streamline production processes and reduce the need for manual labor.
4. Fiber Laser Integration: While CO2 lasers are well-suited for non-metallic materials, fiber lasers are more effective for cutting metals. Some manufacturers are developing hybrid systems that combine CO2 and fiber laser technology, allowing for a wider range of materials to be processed on a single machine.
5. Artificial Intelligence (AI) and Machine Learning (ML): AI and ML technologies are being incorporated into laser cutting systems to optimize cutting parameters, detect defects, and improve overall performance. These advancements will enable more efficient and automated laser cutting processes.
6. Compact and Affordable Machines: There is a growing demand for smaller and more affordable CO2 laser cutting machines for hobbyists, makers, and small businesses. Manufacturers are responding by developing compact desktop models that offer many of the same features as larger industrial machines.
7. 3D Laser Cutting: While traditional CO2 laser cutting is primarily a 2D process, 3D laser cutting is gaining traction in certain industries. 3D laser cutting machines can cut and shape complex 3D objects, opening up new possibilities for product design and manufacturing.
8. Sustainability: There is an increasing focus on sustainability in manufacturing, and CO2 laser cutting is no exception. Manufacturers are developing more energy-efficient lasers and exploring ways to reduce waste and emissions associated with the cutting process.
9. New Materials and Applications: As technology advances, CO2 lasers are being used to cut and engrave new materials, such as composites and advanced plastics. This is expanding the range of applications for laser cutting in industries like aerospace, automotive, and medical devices.
10. Cloud Connectivity and IoT: CO2 laser cutting machines are becoming increasingly connected to the cloud and integrated with the Internet of Things (IoT). This allows for remote monitoring, diagnostics, and control of the machines, as well as data collection and analysis for process optimization.

The future of CO2 laser cutting machines is bright, with ongoing innovations and advancements that promise to transform the way we manufacture and create products. From increased power and precision to automation and AI integration, these technologies will continue to drive the evolution of CO2 laser cutting and expand its applications across various industries. So, keep an eye on this space – the future of laser cutting is looking sharp!

Conclusion

So, there you have it, guys! A comprehensive guide to the world of CO2 laser cutting machines. We've covered everything from the basics of how they work to their diverse applications, benefits, safety precautions, and the exciting future trends in the field. CO2 laser cutting technology is a powerful and versatile tool that is revolutionizing industries across the globe. Whether you're a business owner, a maker, or simply someone curious about the technology, I hope this guide has provided you with valuable insights and information.

The precision, versatility, and efficiency of CO2 laser cutting make it an indispensable tool for a wide range of applications. From creating intricate designs on wood and acrylic to cutting fabric and engraving personalized gifts, the possibilities are truly endless. The non-contact nature of the process, the clean cuts, and the ability to automate operations make CO2 laser cutting a cost-effective and time-saving solution for many businesses.

However, it's crucial to remember that safety should always be the top priority when working with lasers. Following safety precautions, wearing appropriate eye protection, and ensuring proper ventilation are essential for preventing accidents and injuries. By understanding the risks and taking the necessary precautions, you can safely harness the power of CO2 laser cutting and enjoy its many benefits.

As technology continues to advance, we can expect to see even more exciting developments in the field of CO2 laser cutting. From higher power lasers and improved beam quality to automation and AI integration, the future is bright for this versatile technology. So, whether you're looking to invest in a CO2 laser cutting machine for your business or simply want to stay informed about the latest advancements in the field, keep exploring and learning. The world of laser cutting is full of possibilities, and I hope this guide has inspired you to discover them!

Thanks for reading, and happy cutting!
