CNC Laser Acrylic Cutting: Your Ultimate Guide

Are you looking to master the art of acrylic cutting with a CNC laser machine? Or are you just curious about what this technology can do? Well, you've landed in the right place! This comprehensive guide will dive deep into the world of CNC laser acrylic cutting machines, exploring everything from their advantages and applications to the nitty-gritty of choosing the right one and optimizing your cutting process. So, grab a cup of coffee, and let's get started!

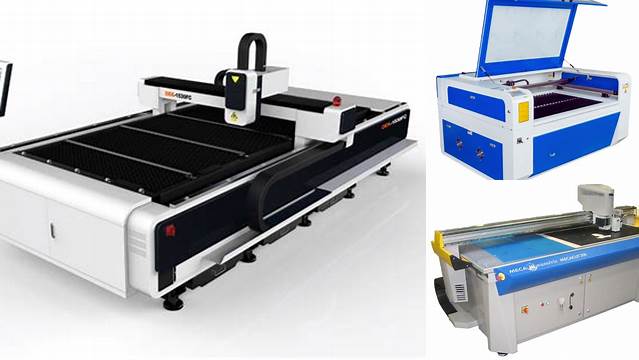

What is a CNC Laser Acrylic Cutting Machine?

Let's break down what exactly a CNC laser acrylic cutting machine is all about. In essence, it's a sophisticated piece of equipment that uses a high-powered laser beam to precisely cut acrylic sheets. But it's more than just a laser; the "CNC" part stands for Computer Numerical Control, which means the machine's movements are controlled by a computer program. This allows for incredible accuracy and the ability to create intricate designs with ease.

Think of it like this: imagine trying to cut out a complex shape from a piece of acrylic using a hand saw. It would be challenging, time-consuming, and the results might not be perfect. Now, picture a CNC laser machine doing the same job. It can follow a computer-generated path with laser-like precision (pun intended!), creating clean, smooth cuts that are virtually impossible to achieve manually. The magic lies in the laser beam, which is focused through a lens to create a tiny, powerful spot of light. This beam instantly vaporizes the acrylic material, leaving behind a clean edge. The CNC system then moves the laser head (or the acrylic sheet) according to the programmed design, resulting in the desired shape. The precision and repeatability offered by CNC technology are game-changers for businesses and hobbyists alike.

The versatility of these machines is another huge advantage. They can handle a wide range of acrylic thicknesses, from thin sheets used for signage to thicker blocks for structural components. And it's not just about cutting; many CNC laser machines can also engrave acrylic, opening up a world of creative possibilities. You can etch intricate patterns, text, or even photographs onto acrylic surfaces, adding a personalized touch to your projects. Moreover, the speed and efficiency of CNC laser cutting are unmatched. Once the design is programmed and the machine is set up, it can churn out parts much faster than traditional methods. This makes it ideal for both small-scale prototyping and large-scale production runs. So, if you're looking for a cutting solution that combines accuracy, speed, and versatility, a CNC laser acrylic cutting machine is definitely worth considering.

Advantages of Using a CNC Laser for Acrylic Cutting

Why should you choose a CNC laser machine for acrylic cutting over other methods? Well, there are several compelling advantages that make it a top choice for many professionals and hobbyists. Let's delve into some key benefits:

• Precision and Accuracy: The hallmark of CNC laser cutting is its exceptional precision. As we discussed earlier, the computer-controlled laser beam can follow intricate designs with incredible accuracy, typically within a tolerance of 0.001 inches or even better. This means you can create complex shapes, tight corners, and delicate details without worrying about errors or inconsistencies. For applications that demand high precision, such as signage, model making, or electronic components, a CNC laser is the perfect tool. The clean cuts produced by the laser also eliminate the need for secondary finishing processes, saving you time and effort.
• Clean and Smooth Cuts: Another significant advantage is the quality of the cuts. Unlike mechanical cutting methods that can leave rough edges or burrs, a laser beam vaporizes the acrylic material, resulting in a clean, smooth finish. This is particularly important for acrylic, which is a visually appealing material often used in applications where aesthetics matter. The smooth edges also reduce the risk of stress fractures or other structural weaknesses, ensuring the durability of your parts. With CNC laser cutting, you can achieve professional-looking results every time, without the need for sanding, polishing, or other post-processing steps.
• Material Efficiency: CNC laser cutting is also a very material-efficient process. The narrow laser beam creates a minimal kerf (the width of the cut), which means less material is wasted. This is especially important when working with expensive materials like acrylic. By nesting parts efficiently in your design software, you can maximize the number of pieces you cut from a single sheet, reducing waste and saving money. In addition, CNC laser machines can often cut very close to the edge of the material, further improving material utilization. This efficiency not only benefits your bottom line but also contributes to a more sustainable manufacturing process.
• Versatility: CNC laser machines aren't just for cutting; many models can also engrave acrylic. This opens up a world of possibilities for adding custom designs, logos, or text to your projects. The laser can etch intricate patterns onto the surface of the acrylic, creating a frosted or textured effect. You can even engrave photographs or other images with stunning detail. This versatility makes CNC laser machines a valuable tool for a wide range of applications, from personalized gifts and awards to signage and decorative elements. The ability to both cut and engrave on the same machine streamlines your workflow and expands your creative potential. Guys, you can really let your imagination run wild!
• Speed and Efficiency: When it comes to production speed, CNC laser cutting is hard to beat. Once the design is programmed and the machine is set up, it can rapidly cut through acrylic sheets, producing parts much faster than manual methods or other cutting techniques. This efficiency is particularly beneficial for businesses that need to produce large quantities of parts quickly. The automated nature of CNC laser cutting also reduces the need for manual labor, freeing up your time and resources for other tasks. Whether you're working on a small batch of prototypes or a large production run, a CNC laser machine can significantly improve your throughput and efficiency.

Key Applications of CNC Laser Acrylic Cutting Machines

The versatility of CNC laser acrylic cutting machines makes them indispensable in various industries and applications. Let's explore some of the most common uses:

• Signage and Displays: Acrylic is a popular material for signage and displays due to its clarity, durability, and aesthetic appeal. CNC laser cutting allows for the creation of precise, intricate shapes and designs for signs, displays, and point-of-sale materials. The clean, smooth edges produced by the laser enhance the visual impact of the signage, while the ability to engrave adds another dimension of customization. From simple directional signs to complex illuminated displays, CNC laser cutting enables the creation of eye-catching signage that effectively communicates your message.
• Awards and Trophies: Acrylic is also widely used for awards and trophies, offering a modern and elegant alternative to traditional materials like glass or metal. CNC laser cutting allows for the creation of custom shapes, intricate designs, and personalized engravings, making each award unique and memorable. The precision of the laser ensures clean, crisp details, while the smooth edges provide a professional finish. Whether it's a corporate award, a sports trophy, or a personalized gift, CNC laser cutting can help you create stunning recognition pieces that are sure to be treasured.
• Model Making and Prototyping: The precision and accuracy of CNC laser cutting make it an ideal tool for model making and prototyping. Architects, engineers, and designers can use laser cutting to create detailed scale models, architectural mock-ups, and functional prototypes. The ability to cut intricate shapes and tight corners allows for the creation of complex designs that would be difficult or impossible to achieve manually. CNC laser cutting also enables rapid prototyping, allowing designers to quickly iterate on their designs and test different concepts. This speeds up the development process and helps ensure the success of the final product.
• Electronics Enclosures: Acrylic is a popular material for electronics enclosures due to its insulating properties and transparency. CNC laser cutting allows for the creation of custom enclosures with precise cutouts for connectors, switches, and displays. The smooth edges produced by the laser eliminate the need for deburring or other finishing operations, saving time and effort. The ability to engrave labels and markings onto the enclosure adds another level of functionality and professionalism. Whether it's a small enclosure for a DIY project or a large enclosure for industrial equipment, CNC laser cutting provides a cost-effective and efficient solution.
• Decorative Items and Art: Beyond industrial applications, CNC laser cutting is also used to create a wide range of decorative items and art pieces. From intricate wall art and personalized gifts to custom jewelry and decorative lighting, the possibilities are endless. The laser can cut intricate patterns and designs into acrylic, creating stunning visual effects. The ability to engrave adds another dimension of creativity, allowing artists and designers to create unique and personalized pieces. CNC laser cutting empowers artists and hobbyists to bring their creative visions to life with precision and ease.

Choosing the Right CNC Laser Acrylic Cutting Machine

Selecting the right CNC laser acrylic cutting machine can feel daunting, but breaking it down into key factors makes the process manageable. Here's what you need to consider:

• Laser Power: Laser power is a critical factor that determines the cutting speed and thickness capacity of the machine. Higher power lasers can cut thicker acrylic sheets and work faster, but they also come with a higher price tag. For most acrylic cutting applications, a laser power of 40-80 watts is sufficient. If you plan to cut thicker acrylic (over 1/2 inch) or work with other materials like wood or metal, you may need a higher power laser. It's essential to consider your current and future needs when choosing the laser power. Overpowering can be wasteful, while underpowering will limit your capabilities. Guys, think about the types of projects you'll be tackling most often.
• Work Area: The work area, or cutting bed size, determines the maximum size of the acrylic sheets you can process. If you primarily work with small parts, a smaller work area might suffice. However, if you need to cut larger pieces, you'll need a machine with a larger work area. Consider the dimensions of the most common acrylic sheets you'll be using and choose a machine that can accommodate them. It's always better to have a little extra space than to be limited by the work area size. Also, think about whether you'll need to cut multiple small parts at once. A larger work area can allow you to nest more parts, increasing your efficiency.
• Laser Source: The type of laser source affects the beam quality, cutting speed, and overall performance of the machine. The two main types of laser sources used in CNC laser acrylic cutting machines are CO2 lasers and fiber lasers. CO2 lasers are the most common type and are well-suited for cutting and engraving acrylic. They offer a good balance of power, speed, and cost. Fiber lasers, on the other hand, are more powerful and efficient but also more expensive. They are typically used for cutting metals but can also be used for acrylic cutting. The choice between CO2 and fiber laser depends on your specific needs and budget. If you primarily work with acrylic and don't need extremely high cutting speeds, a CO2 laser is usually the better option.
• Software and Control System: The software and control system play a crucial role in the ease of use and functionality of the CNC laser machine. A user-friendly software interface allows you to easily import designs, adjust cutting parameters, and control the machine's movements. Look for software that is compatible with common design file formats like DXF and SVG. The control system should be reliable and responsive, ensuring smooth and accurate cutting operations. Some machines come with advanced features like automatic focus adjustment, material libraries, and job queuing. These features can significantly improve your workflow and productivity. Before making a purchase, it's a good idea to try out the software and control system to ensure they meet your needs.
• Budget: Finally, your budget is a significant consideration when choosing a CNC laser acrylic cutting machine. Prices can range from a few thousand dollars for entry-level hobby machines to tens of thousands of dollars for industrial-grade systems. It's important to set a realistic budget and choose a machine that offers the best value for your money. Consider not only the initial cost of the machine but also the ongoing costs, such as maintenance, replacement parts, and consumables (like lenses and nozzles). It's also worth investing in training and support to ensure you can operate the machine effectively and safely. Remember, the cheapest machine isn't always the best option. Focus on finding a machine that meets your needs and offers a good balance of features, performance, and reliability.

Optimizing Your Acrylic Cutting Process

Once you have your CNC laser acrylic cutting machine, optimizing the cutting process is key to achieving the best results. Here are some tips to help you get started:

• Material Selection: Choosing the right type of acrylic is crucial for optimal cutting. Cast acrylic is generally preferred over extruded acrylic for laser cutting because it produces cleaner cuts and less fumes. Cast acrylic is made by pouring liquid acrylic into a mold, while extruded acrylic is made by forcing molten acrylic through a die. Cast acrylic has a more uniform composition, which results in better laser cutting performance. Extruded acrylic, on the other hand, can have variations in thickness and density, which can lead to inconsistent cuts. When selecting acrylic, also consider the thickness and color. Thicker acrylic may require higher laser power and slower cutting speeds. Darker colors absorb more laser energy and may cut faster than lighter colors.
• Laser Settings: The laser power, cutting speed, and frequency settings significantly impact the cutting quality. It's essential to experiment with these settings to find the optimal values for your specific material and machine. Start with the manufacturer's recommended settings and adjust them as needed. Generally, higher laser power and slower cutting speeds result in cleaner cuts but can also lead to excessive heat buildup and material warping. Lower laser power and faster cutting speeds can reduce heat buildup but may not cut through the material cleanly. The frequency setting determines the number of laser pulses per second. Higher frequencies typically result in smoother cuts but can also increase the heat input. It's a balancing act to find the sweet spot that produces the best results.
• Focusing the Laser: Accurate laser focusing is critical for achieving clean, precise cuts. The laser beam needs to be focused to a small spot on the surface of the acrylic to maximize its cutting power. Most CNC laser machines have a focusing lens that can be adjusted to change the focal point. The ideal focal point depends on the thickness of the material. For thicker acrylic, the focal point may need to be slightly below the surface, while for thinner acrylic, it may need to be on the surface. It's important to use a consistent focusing method, such as a focusing gauge or a ramp test, to ensure accurate and repeatable results. A properly focused laser beam will produce clean cuts with minimal kerf and edge burning.
• Ventilation and Fume Extraction: Laser cutting acrylic produces fumes that can be harmful to your health and the environment. It's essential to have a proper ventilation and fume extraction system to remove these fumes from the work area. A fume extractor typically consists of a fan, ductwork, and a filter system. The filter system removes particulate matter and volatile organic compounds (VOCs) from the air. Proper ventilation also helps to prevent the buildup of flammable gases, which can pose a fire hazard. It's important to follow the manufacturer's recommendations for ventilation and fume extraction and to regularly maintain the system to ensure it's working effectively. Inadequate ventilation can lead to health problems, poor cutting quality, and even damage to the machine.
• Material Hold-Down: Securing the acrylic sheet firmly to the cutting bed is essential to prevent movement during the cutting process. Movement can result in inaccurate cuts and damage to the material or the machine. There are several methods for holding down acrylic sheets, including clamps, double-sided tape, and vacuum hold-down systems. Clamps are a simple and effective method for holding down larger sheets, but they can interfere with the laser head if they are placed too close to the cutting path. Double-sided tape can be used to secure smaller sheets, but it can leave a residue on the material. Vacuum hold-down systems use suction to hold the material in place and are ideal for thin or flexible sheets. The best hold-down method depends on the size and shape of the material and the cutting process.

Conclusion

So, there you have it! A comprehensive guide to CNC laser acrylic cutting machines. From understanding the basics to optimizing your cutting process, we've covered a lot of ground. These machines are powerful tools that can unlock a world of creative and practical possibilities. Whether you're a hobbyist, a small business owner, or an industrial manufacturer, a CNC laser acrylic cutting machine can help you achieve precision, efficiency, and stunning results. Remember to consider your needs, budget, and the key factors we discussed when choosing the right machine. And with the optimization tips we've shared, you'll be well on your way to mastering the art of acrylic cutting. Happy cutting, guys!
