CNC Cutting Plywood: Comprehensive Guide

Introduction to CNC Cutting Plywood

Hey there, woodworking enthusiasts and DIY aficionados! Ever wondered how those incredibly intricate designs are cut into plywood with such precision? The secret lies in CNC cutting plywood. CNC, which stands for Computer Numerical Control, is a manufacturing process that uses computerized controls to automate the movement of tools. In the case of plywood, this typically involves a router bit that carves out designs based on digital instructions. It's a game-changer because it allows for complex cuts, high accuracy, and repeatability, making it perfect for everything from custom furniture to artistic creations. Think about the possibilities, guys! With a CNC machine, you're not just limited to simple straight lines. You can create curves, intricate patterns, and even 3D shapes, all with the accuracy of a machine. This technology has revolutionized the way we work with wood, opening up a world of possibilities for both professionals and hobbyists. This guide will take you through everything you need to know about CNC cutting plywood, from the basics to advanced techniques. We'll cover the types of plywood best suited for CNC, the necessary equipment, the software you'll need, and some tips and tricks to get the best results. So, whether you're a seasoned woodworker looking to upgrade your skills or a complete newbie curious about CNC, buckle up! It's time to dive into the fascinating world of CNC plywood cutting. We'll explore the advantages, the considerations, and the steps involved in turning your digital designs into tangible, beautiful creations. Prepare to be amazed by the precision and versatility that CNC technology brings to the art of woodworking. We'll also touch upon some common challenges and how to overcome them, ensuring you're well-equipped to start your own CNC plywood projects. Ready to learn how to make stunning wood creations? Let's get started, my friends!

Choosing the Right Plywood for CNC Cutting

Alright, before we get into the nitty-gritty of the CNC process, let's talk about plywood itself. Not all plywood is created equal, and the type you choose can significantly impact the quality of your final product. For CNC cutting, you'll want to select plywood that is specifically designed for this purpose or at least suitable for it. First off, let's talk about the different grades of plywood. You'll often see grades like A, B, C, and D, which refer to the quality of the veneer faces. A-grade plywood has the smoothest, most flawless surface, making it ideal for projects where appearance is crucial. B-grade has some minor imperfections, while C and D grades have more knots and defects. For CNC cutting, you might consider A or B grade for the visible surfaces, while the core layers can be of a lower grade, depending on the project's needs. The thickness of the plywood is another important factor. The thickness will affect the stability of the material and how easily it cuts. Common thicknesses for CNC projects range from 1/4 inch to 3/4 inch, but this can vary widely depending on your project requirements. Thicker plywood offers more structural integrity, while thinner plywood is easier to cut and bend. Think about the kind of project you're planning. Are you making furniture, signs, or something else? The project requirements will influence which type of plywood to use. Besides the grade and thickness, the type of wood the plywood is made from also matters. Baltic birch plywood is a popular choice for CNC projects because it's known for its stability, uniform thickness, and clean appearance. It's also relatively easy to cut, making it a great choice for beginners. Another great option is MDF (Medium-Density Fiberboard), which offers a smooth surface and consistent density, making it ideal for intricate cuts. But, MDF can be more prone to chipping and may not be as durable as plywood. Lastly, consider the intended use of your project. Is it going to be exposed to moisture or the elements? If so, you'll want to select plywood that's specifically designed for these conditions. Marine-grade plywood is treated to resist water damage, making it suitable for outdoor projects. By understanding these factors, you can choose the right plywood for your CNC project, setting yourself up for success. Remember, the quality of your materials directly affects the outcome of your project, so choose wisely!

Essential Equipment and Software for CNC Plywood Cutting

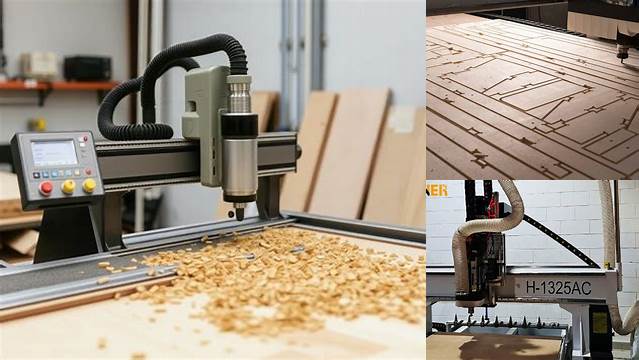

Now that we've covered plywood selection, let's delve into the equipment and software you'll need to get started with CNC plywood cutting. This might seem daunting at first, but don't worry, we'll break it down step by step, so you'll know how to be prepared for the journey. At the heart of the operation is the CNC machine itself. There are different types of CNC machines, including routers, laser cutters, and plasma cutters. For plywood, a CNC router is the most common choice. These machines come in various sizes and configurations, from small desktop models to large industrial machines. The size you need will depend on the size of your projects and the amount of space you have available. Next up, you'll need the right cutting tools, also known as bits. CNC router bits come in a wide variety of shapes and sizes, each designed for a specific purpose. For plywood, you'll typically use straight bits, spiral up-cut bits, and spiral down-cut bits. Straight bits are great for general cutting, while spiral bits offer cleaner cuts and can help prevent tear-out. Selecting the right bit for your project is crucial for achieving clean, precise cuts. Another essential piece of equipment is the workholding system. This is how you secure the plywood to the CNC machine's work surface. Common workholding methods include clamps, screws, and vacuum hold-down systems. The method you choose will depend on the size and shape of your plywood, as well as the type of machine you're using. Safety equipment is non-negotiable when working with CNC machines. You'll need safety glasses to protect your eyes from flying debris, hearing protection to reduce noise levels, and a dust collection system to remove wood dust from the air. This is for your health and safety, guys! Now, let's talk about software. You'll need two main types of software: CAD (Computer-Aided Design) software to create your designs and CAM (Computer-Aided Manufacturing) software to generate the machine code that your CNC machine will use to cut the plywood. Popular CAD software options include Fusion 360, Vectric VCarve, and Adobe Illustrator. For CAM software, you might use the CAM features within Fusion 360 or dedicated CAM software like VCarve. When choosing software, consider the complexity of your projects, your budget, and your experience level. Don't hesitate to try free trials of different software to see what works best for you. With the right equipment and software, you'll be well on your way to bringing your designs to life with CNC plywood cutting.

Step-by-Step Guide to CNC Cutting Plywood

Alright, guys, let's get down to the nitty-gritty and walk through the step-by-step process of CNC cutting plywood. This is where the digital designs come to life! First, you'll need to design your project using CAD software. This is where you create the 2D or 3D model of your desired shape, design, or pattern. The software allows you to specify dimensions, create curves, and add details. Once your design is ready, you'll need to export it in a format that your CAM software can understand. Common file formats include DXF, SVG, and EPS. Next, import your design into your CAM software. This is where you'll prepare the design for cutting. You'll define the cutting paths, select the appropriate tools (bits), and set the cutting parameters, such as feed rate (how fast the bit moves) and cutting depth. The CAM software will then generate the G-code, which is the language your CNC machine uses to understand the cutting instructions. Carefully review the G-code to make sure that the machine will do what you want. Now, prepare your plywood. Secure the plywood to the CNC machine's work surface using your chosen workholding method. Make sure the plywood is level and properly aligned. This is important because it prevents any errors or issues during the cutting process. Then, you will load the G-code into your CNC machine's control software. Double-check that the machine is set up correctly and that all safety measures are in place. Start the machine and begin the cutting process. Always monitor the machine while it's cutting and be ready to stop the machine if you notice any problems. Watch for any potential issues and intervene quickly if necessary. When the cutting is complete, carefully remove the plywood from the machine. Inspect your finished project for any imperfections or areas that might need additional work. You can then sand, finish, or assemble your pieces as needed. The entire CNC cutting process is a blend of digital design and physical execution. And as you gain more experience, you'll become more confident in your ability to produce beautiful and precise cuts. These steps will help you learn how to bring your designs to life using this technology.

Tips and Tricks for Successful CNC Plywood Cutting

Let's take a look at some tips and tricks that will help you achieve better results and avoid common pitfalls when CNC cutting plywood. We're going to get specific about how to work better. To start, select the right bit for the job. Using the correct bit is crucial. For example, spiral up-cut bits are great for quickly removing material, but they can cause tear-out on the top surface of the plywood. Spiral down-cut bits, on the other hand, push the chips down, resulting in a cleaner top surface but can leave more tear-out on the bottom. Experiment with different bits to see which ones work best for your specific projects and materials. Also, don't forget to optimize your cutting parameters. Experiment with feed rates and cutting depths. Cutting too fast can lead to chipping and inaccurate cuts. Cutting too slow can increase the risk of burning the wood. You might have to play with the settings until you find the perfect balance for your machine and material. Speaking of optimizing, use tabs to hold the pieces in place during cutting. Tabs are small bridges of material that remain uncut, preventing the pieces from moving or flying off the work surface. Place your tabs strategically, so they're easy to remove after the cut is complete. Another useful tip is to consider the grain direction of the plywood. The grain direction will affect the way the wood cuts and the appearance of the final product. When designing your project, try to align the grain with the direction of the cut for smoother edges. Also, before you start a large project, always do a test cut. Cut a small sample piece of plywood to test your cutting parameters, bit selection, and workholding method. This will help you identify any potential problems before you commit to cutting your entire project. Another aspect to consider is dust collection. Plywood cutting generates a lot of fine dust, which can be a health hazard. Always use a dust collection system to remove the dust from the air and keep your workspace clean. A clean workspace makes things safer and improves the cutting quality. Lastly, always be patient and take your time. CNC cutting can be a complex process. Don't be afraid to experiment, ask questions, and learn from your mistakes. With these tips and tricks, you'll be well on your way to producing high-quality CNC plywood projects.

Troubleshooting Common CNC Plywood Cutting Problems

Even with careful planning and execution, you might encounter some problems when CNC cutting plywood. Here's how to address them. One of the most common issues is tear-out, where the wood fibers are torn away from the surface of the plywood. This is often caused by using the wrong bit, cutting too fast, or not clamping the material securely. To fix this, try using a spiral down-cut bit or a compression bit, reduce the feed rate, and ensure your plywood is tightly secured. Also, chipping along the edges can also occur. This typically happens when the bit dulls, when the feed rate is too fast, or the cutting depth is too deep. To solve this, make sure your bit is sharp, reduce the feed rate, and consider making multiple passes at a shallower cutting depth. If your cuts are not accurate, it could be due to several factors. The machine might not be calibrated correctly, your workholding might be inadequate, or your design file might have errors. Check that your machine is properly calibrated, ensure your material is securely clamped, and double-check your design file for any mistakes. If your bit breaks, this is usually a result of excessive force, a dull bit, or cutting too deep. Avoid this by checking your bit regularly, making sure your feed rate is appropriate, and adjusting the cutting depth. Also, make sure to check your designs for any mistakes before the process. Burning or scorching of the wood is another problem. This happens when the bit is cutting too slowly or the feed rate is too fast. It's also common when the bit is dull. Prevent burning by increasing the feed rate, using a sharp bit, and experimenting with different cutting speeds. Lastly, material movement can ruin your project. The plywood may move during cutting. To prevent this, ensure the material is securely clamped to the bed. Try to use a vacuum hold-down system. By understanding these common problems and their solutions, you'll be able to overcome challenges and create successful CNC plywood projects.

Projects and Applications of CNC Plywood Cutting

Now, let's get inspired by the various projects and applications possible with CNC plywood cutting! One of the most popular applications is furniture making. From custom cabinets and tables to intricate chair designs, CNC allows for precise cuts and complex joinery, enabling you to create beautiful and functional furniture. You can create anything you can imagine, from simple to extremely complex shapes. Sign making is another popular application. CNC machines are perfect for cutting custom signs, whether for businesses or personal use. With the right software, you can design and cut signs with intricate lettering, logos, and graphics. CNC plywood cutting is also great for artistic creations. Artists and designers use CNC machines to create stunning sculptures, wall art, and decorative panels. The precision and versatility of CNC allow for the creation of intricate designs and unique artistic expressions. Architectural elements are also perfect candidates for this technology. Use it to cut decorative panels, screens, and other architectural features. CNC cutting provides the precision and efficiency needed for large-scale projects. Toys and games are also commonly made with CNC. CNC cutting is ideal for creating wooden puzzles, board games, and educational toys. The ability to cut small, intricate shapes makes it perfect for this application. Prototyping is another important use. CNC allows designers and engineers to quickly create prototypes of their designs. This allows for rapid iteration and testing, which makes it a valuable tool in the design process. These are just a few examples of the many applications of CNC plywood cutting. With a little creativity and imagination, the possibilities are endless. The versatility of CNC technology allows you to bring your ideas to life. So, why not start your first project today? There is a lot of amazing things to do.

Conclusion: Embrace the Possibilities of CNC Plywood Cutting

In conclusion, CNC plywood cutting is a powerful and versatile technology that has revolutionized woodworking. With the right equipment, software, and a little bit of practice, you can create amazing things. We've covered everything from choosing the right plywood and the essential equipment and software to troubleshooting common problems and exploring various applications. Remember to start with the basics, experiment with different techniques, and don't be afraid to learn from your mistakes. The world of CNC plywood cutting is filled with endless possibilities. You can create custom furniture, signs, artistic creations, architectural elements, and much more. Take advantage of this and create something amazing! So, embrace the technology, unleash your creativity, and start your CNC plywood journey today! You might be surprised by how much you can do. Happy cutting, everyone!
