CNC Carbon Fiber Cutting: The Ultimate Guide

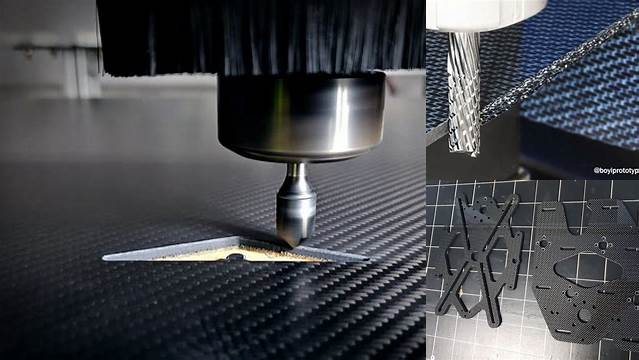

Introduction to CNC Cutting of Carbon Fiber

Hey guys! Let's dive into the world of cutting carbon fiber with CNC machines. If you're new to this, carbon fiber is a super strong and lightweight material used in everything from aerospace to sporting goods. CNC, or Computer Numerical Control, is a process where machines precisely cut materials based on digital designs. Combining these two is a match made in engineering heaven, but it's also a process that requires some serious know-how. This section will explore the basics of CNC cutting carbon fiber, explaining why it's such a popular method and giving you a solid foundation for understanding the rest of this guide. We’ll cover the advantages, challenges, and crucial first steps to get you started. Think of it as your 101 course on precision cutting – buckle up!

First off, why CNC? Well, it's all about precision and repeatability. When you need to cut carbon fiber into complex shapes with tight tolerances, CNC machines are your best friend. They follow instructions from CAD (Computer-Aided Design) software, ensuring each piece is cut exactly as designed. This is especially important in industries where accuracy is paramount, like aerospace or automotive. But with great power comes great responsibility, and carbon fiber is a unique material to work with. It's abrasive, meaning it can wear down cutting tools quickly, and it creates a nasty dust that’s not just messy but also hazardous if inhaled. We'll get into safety measures later, but it's crucial to understand these challenges from the get-go. So, whether you’re a hobbyist or a professional, understanding the fundamentals of CNC cutting carbon fiber is the first step toward mastering this intricate process. Let's get cutting!

Benefits of Using CNC for Carbon Fiber

So, why choose CNC for cutting carbon fiber? The benefits are numerous and compelling, making it the go-to method for many industries. First and foremost is precision. CNC machines can cut carbon fiber with incredibly tight tolerances, ensuring that each piece matches the design specifications perfectly. This is critical in applications where even small deviations can compromise performance, such as in aerospace components or high-performance automotive parts. Think about it – you need consistency and accuracy when building something that might fly or race at high speeds! Another significant advantage is repeatability. Once a program is set up, a CNC machine can cut identical parts over and over again, reducing the risk of human error and ensuring consistent quality across large production runs. This is a huge time-saver and cost-reducer, especially for businesses that need to produce carbon fiber parts in bulk.

Beyond precision and repeatability, CNC cutting offers unmatched flexibility in design. Complex shapes and intricate patterns that would be nearly impossible to achieve with manual methods are easily handled by CNC machines. This opens up a world of possibilities for designers and engineers, allowing them to create innovative and optimized carbon fiber structures. Plus, CNC machines can work with a variety of carbon fiber thicknesses and orientations, making them suitable for a wide range of applications. Now, let's talk about material efficiency. CNC cutting can be optimized to minimize waste, which is particularly important when working with expensive materials like carbon fiber. By carefully nesting parts within a sheet, you can reduce the amount of scrap and save money in the long run. Finally, CNC cutting can be faster and more efficient than traditional methods, especially for complex shapes or large production volumes. While the initial setup might take some time, the actual cutting process is often much quicker, leading to increased throughput and faster turnaround times. So, whether you're aiming for precision, consistency, design flexibility, material efficiency, or speed, CNC cutting of carbon fiber offers a winning combination of advantages. It’s no wonder it's become the industry standard!

Types of CNC Machines for Cutting Carbon Fiber

When it comes to cutting carbon fiber using CNC, you’ve got a few different machine types to choose from, each with its own strengths and weaknesses. Understanding these options is key to selecting the right tool for your specific needs and budget. Let's break down the main contenders. First up, we have CNC milling machines. These are probably the most common type of CNC machine used for carbon fiber cutting. They use rotating cutting tools to remove material, and they come in various sizes and configurations, from small desktop models to large industrial machines. Milling machines are versatile and can handle a wide range of cutting operations, from simple shapes to complex 3D contours. They’re a solid all-around choice for many carbon fiber projects.

Next, we have CNC routers. These are similar to milling machines but are typically larger and designed for cutting softer materials, although they can certainly handle carbon fiber. Routers often have larger work areas and higher spindle speeds, making them suitable for cutting large sheets of carbon fiber. They’re also generally more affordable than milling machines, making them a popular option for hobbyists and smaller businesses. Then there are CNC waterjet cutters. These machines use a high-pressure stream of water, often mixed with an abrasive substance, to cut through materials. Waterjet cutting is particularly well-suited for carbon fiber because it doesn't generate heat, which can damage the material. It also produces a clean, smooth edge. However, waterjet cutters can be more expensive than milling machines or routers. Laser cutting is another method used for carbon fiber, where a focused laser beam is used to vaporize the material. Laser cutting is fast and precise, but it can generate heat, which can be a concern for some carbon fiber applications. It also produces fumes that need to be properly ventilated. Finally, there are specialized CNC machines designed specifically for composites, including carbon fiber. These machines often incorporate features like vacuum tables to hold the material in place and advanced dust collection systems to deal with carbon fiber particles. They're typically the most expensive option but offer the best performance and safety for high-volume carbon fiber cutting. So, whether you need versatility, affordability, speed, or specialized capabilities, there’s a CNC machine out there that’s perfect for your carbon fiber cutting needs. The key is to weigh the pros and cons of each type and choose the one that best fits your requirements.

Choosing the Right Cutting Tools

Okay, guys, let's talk tools! When you're cutting carbon fiber, the right cutting tool can make all the difference between a clean, precise cut and a messy, splintered mess. Carbon fiber is a tough, abrasive material, so you need tools that can handle the wear and tear. Using the wrong tool can not only damage the carbon fiber but also ruin your cutting tool in no time. So, what are the best options? Diamond-coated tools are the gold standard for cutting carbon fiber. Diamonds are incredibly hard and resistant to abrasion, making them ideal for this demanding task. These tools come in various forms, including end mills, router bits, and saw blades. While they can be a bit pricey, their long lifespan and superior cutting performance make them a worthwhile investment, especially for frequent carbon fiber projects.

Solid carbide tools are another popular choice for cutting carbon fiber. Carbide is a hard and durable material that can withstand the abrasive nature of carbon fiber. These tools are more affordable than diamond-coated tools but may not last as long. However, for smaller projects or less frequent cutting, they can be a great option. When selecting carbide tools, look for those with a high-quality coating, such as titanium aluminum nitride (TiAlN), which can further improve their wear resistance. High-Speed Steel (HSS) tools are generally not recommended for cutting carbon fiber. They’re not hard enough to withstand the abrasion and will dull quickly, resulting in poor cut quality and a short tool life. It’s better to stick with diamond-coated or solid carbide tools for the best results. Now, let's talk about tool geometry. The shape and design of the cutting tool also play a crucial role in the cutting performance. For example, compression-style router bits are designed to prevent splintering and delamination, making them a good choice for carbon fiber. Upcut and downcut bits have different effects on the material, so choosing the right one for your specific application is important. Ultimately, selecting the right cutting tool for carbon fiber involves considering the material, the cutting operation, and your budget. Investing in high-quality tools will not only improve the quality of your cuts but also save you time and money in the long run by reducing tool wear and the need for replacements. So, do your research, choose wisely, and get ready to cut some carbon fiber like a pro!

Setting Up Your CNC Machine for Carbon Fiber

Alright, you've got your CNC machine, and you've got your cutting tools – now it's time to get everything set up for cutting carbon fiber. This step is crucial because the right setup can significantly impact the quality of your cuts and the lifespan of your tools. First things first, let’s talk about workholding. Securely holding your carbon fiber sheet is essential to prevent movement and vibration during the cutting process. Vacuum tables are a popular choice for carbon fiber because they provide a strong, even hold without damaging the material. These tables use a vacuum to suck the carbon fiber sheet down onto the surface, keeping it firmly in place. If you don’t have a vacuum table, you can also use double-sided tape or clamps, but be careful not to over-tighten the clamps, as this can damage the carbon fiber.

Next up is spindle speed and feed rate. These settings determine how fast the cutting tool rotates and how quickly it moves through the material. Finding the right balance is key to achieving clean cuts without overheating the tool or damaging the carbon fiber. Generally, higher spindle speeds and lower feed rates are recommended for carbon fiber. This helps to reduce heat buildup and prevent splintering. However, the optimal settings will depend on the specific cutting tool and the thickness of the carbon fiber, so it’s always a good idea to test different settings and see what works best for your setup. Coolant is another important consideration. Cutting carbon fiber generates heat, which can damage both the material and the cutting tool. Using a coolant can help to dissipate heat and keep the cutting process running smoothly. However, traditional coolants can be messy and may not be compatible with carbon fiber. Air cooling or misting systems are often preferred because they provide cooling without the mess. Now, let’s talk about dust extraction. Cutting carbon fiber creates a fine, abrasive dust that can be harmful to your health if inhaled. It’s essential to have a good dust collection system in place to remove these particles from the air. A vacuum system attached to the CNC machine is the most effective way to capture the dust at the source. You should also wear a respirator mask to protect yourself from inhaling any remaining particles. Finally, don’t forget to calibrate your CNC machine before you start cutting. This ensures that the machine is cutting accurately and that your parts will come out to the correct dimensions. Calibration involves checking and adjusting the machine’s axes to ensure they are moving correctly. So, take the time to set up your CNC machine properly for carbon fiber, and you’ll be well on your way to achieving high-quality, precise cuts.

Cutting Parameters: Speed and Feed

Okay, let's get down to the nitty-gritty of cutting carbon fiber: speed and feed. These two parameters are like the dynamic duo of CNC cutting – get them right, and you'll be making smooth, clean cuts. Get them wrong, and you could end up with a splintered mess or a dull cutting tool. So, what exactly are speed and feed? Spindle speed, measured in RPM (revolutions per minute), is how fast your cutting tool is spinning. Feed rate, measured in inches per minute (IPM) or millimeters per minute (mm/min), is how quickly the tool moves through the material. The ideal speed and feed for carbon fiber depend on several factors, including the type of cutting tool, the thickness of the carbon fiber, and the specific CNC machine you're using. However, there are some general guidelines you can follow to get started.

As a general rule, when cutting carbon fiber, it’s better to use a higher spindle speed and a lower feed rate. This helps to reduce heat buildup and prevent the material from splintering or delaminating. High spindle speeds ensure that the cutting tool is always sharp and clean, while lower feed rates prevent the tool from being forced through the material too quickly, which can cause damage. For diamond-coated tools, which are the gold standard for cutting carbon fiber, you can typically run at higher speeds and feeds than with carbide tools. A good starting point for spindle speed is around 10,000 to 15,000 RPM, and for feed rate, around 10 to 20 IPM. However, these are just starting points, and you’ll likely need to adjust them based on your specific setup and material. For solid carbide tools, you’ll generally want to run at slightly lower speeds and feeds. A good starting point for spindle speed is around 8,000 to 12,000 RPM, and for feed rate, around 8 to 15 IPM. Again, these are just guidelines, and you should always test your settings and adjust as needed. One of the best ways to dial in your speed and feed is to run some test cuts on scrap material. Start with the recommended settings and then gradually adjust them until you achieve the desired cut quality. If you notice splintering or delamination, try reducing the feed rate. If the tool is overheating or chattering, try reducing the spindle speed. Remember, the goal is to find the sweet spot where you’re cutting efficiently without damaging the material or the tool. So, take the time to experiment and find the optimal speed and feed for your carbon fiber cutting projects.

Safety Precautions When Cutting Carbon Fiber

Alright, let's talk safety. Cutting carbon fiber can be a bit risky if you don't take the right precautions. Carbon fiber dust is no joke – it's abrasive, it's irritating, and it can even be harmful to your lungs if you breathe it in. So, safety needs to be your top priority when you're working with this material. First and foremost, you need a good dust collection system. This is non-negotiable. A vacuum system attached to your CNC machine is the best way to capture the dust at the source, preventing it from spreading into the air. Make sure your dust collector has a HEPA filter, which is designed to trap even the tiniest particles. If you don’t have a dedicated dust collection system, at least work in a well-ventilated area and use a shop vacuum with a HEPA filter to clean up the dust as you go.

Even with a dust collection system, you should always wear a respirator mask when cutting carbon fiber. A N95 or P100 respirator will protect your lungs from inhaling the dust. Don’t skimp on this – your health is worth it! Safety glasses or a face shield are also essential to protect your eyes from flying debris. Carbon fiber splinters can be incredibly irritating if they get in your eyes, so it’s better to be safe than sorry. Gloves are another important piece of safety gear. Carbon fiber splinters can also irritate your skin, so wearing gloves will help to prevent this. Nitrile gloves are a good choice because they’re resistant to chemicals and won’t leave any residue on the carbon fiber. When you’re done cutting, don’t just sweep up the dust. This will only stir it up into the air. Instead, use a vacuum with a HEPA filter to clean up the area. You can also use a damp cloth to wipe down surfaces and collect any remaining dust. And finally, remember to dispose of carbon fiber waste properly. Carbon fiber is not biodegradable, so you can’t just throw it in the trash. Contact your local waste management facility to find out the proper disposal methods in your area. So, safety first, guys! With the right precautions, you can cut carbon fiber safely and enjoy the amazing properties of this material without putting your health at risk.

Troubleshooting Common Issues

Okay, let's be real – cutting carbon fiber isn't always smooth sailing. You're bound to run into some issues along the way, whether it's splintering, delamination, or tool wear. But don't worry, that’s totally normal! The key is to know how to troubleshoot these problems so you can get back to making awesome carbon fiber parts. One of the most common issues is splintering or chipping along the edges of your cuts. This usually happens when the cutting tool is dull, the feed rate is too high, or the spindle speed is too low. If you’re experiencing splintering, the first thing to do is check your cutting tool. Is it sharp? If not, it’s time to replace it. Diamond-coated tools are the best for carbon fiber because they stay sharp longer, but even they need to be replaced eventually. If your tool is sharp, try reducing the feed rate or increasing the spindle speed. Experiment with different settings until you find the sweet spot where the cuts are clean and smooth.

Delamination, or the separation of the carbon fiber layers, is another common problem. This can happen if the cutting tool is generating too much heat, the feed rate is too high, or the workholding isn’t secure enough. To prevent delamination, make sure you’re using a sharp cutting tool and keep the tool cool with air cooling or a misting system. Reducing the feed rate can also help, as can using a vacuum table or other secure workholding method to keep the carbon fiber sheet firmly in place. Tool wear is another issue to watch out for. Carbon fiber is abrasive, so it can wear down cutting tools quickly. If you notice your tools are dulling faster than expected, it could be a sign that you’re running the spindle speed too high or the feed rate too low. Try adjusting these settings to reduce the amount of friction and heat. Also, make sure you’re using the right type of cutting tool for carbon fiber. Diamond-coated tools are the most wear-resistant, but solid carbide tools can also work well if you choose ones with a high-quality coating. Another potential issue is dust buildup. Carbon fiber dust is not only harmful to your health, but it can also interfere with the cutting process. Make sure you have a good dust collection system in place to remove the dust as it’s generated. If you’re still having problems, try using an air blast to clear away the dust from the cutting area. So, don't get discouraged if you run into some issues when cutting carbon fiber. With a little troubleshooting, you can overcome these challenges and achieve the high-quality results you're after.

Post-Processing Techniques for Carbon Fiber

Alright, you've successfully cut your carbon fiber part using CNC – awesome! But the job isn't quite finished yet. Post-processing is the final step in the process, and it's where you refine your part to achieve the desired finish and functionality. Think of it as the finishing touches that transform a raw cut into a polished masterpiece. One of the most common post-processing techniques for carbon fiber is sanding. Even with the most precise CNC cutting, there can still be some rough edges or slight imperfections. Sanding helps to smooth these out and create a clean, professional look. When sanding carbon fiber, it’s important to use the right sandpaper and techniques to avoid damaging the material. Start with a coarser grit sandpaper (around 220-320 grit) to remove any major imperfections, and then gradually move to finer grits (400-600 grit, and even higher) to achieve a smooth finish. Always sand in a well-ventilated area and wear a respirator mask to protect yourself from the dust. Wet sanding, where you use water as a lubricant, can also help to reduce dust and create a smoother finish.

Another important post-processing step is edge finishing. Carbon fiber edges can be sharp and prone to splintering, so it’s important to seal them to prevent this. There are several ways to finish carbon fiber edges, including using epoxy resin, cyanoacrylate (CA) glue, or edge banding. Epoxy resin is a popular choice because it’s strong and durable, and it can be sanded and painted for a seamless finish. CA glue, also known as super glue, is another option for sealing edges. It’s quick and easy to apply, but it may not be as durable as epoxy resin. Edge banding involves applying a thin strip of material, such as plastic or wood veneer, to the edge of the carbon fiber. This provides a clean, finished look and can also help to protect the edge from damage. Painting or coating is another way to enhance the appearance and durability of your carbon fiber part. A clear coat can protect the carbon fiber from UV damage and scratches, while a colored paint can add a custom look. When painting carbon fiber, it’s important to use a primer specifically designed for composites to ensure good adhesion. Finally, consider any additional machining or assembly that may be required. Depending on the application, you may need to drill holes, tap threads, or attach other components to your carbon fiber part. Make sure you use the right tools and techniques for working with carbon fiber to avoid damaging the material. So, post-processing is an essential part of the carbon fiber cutting process. By taking the time to refine your parts, you can achieve a professional finish and ensure they perform as intended.

Advanced Techniques for Carbon Fiber CNC

Alright, you've mastered the basics of cutting carbon fiber with CNC – congrats! But if you're looking to take your skills to the next level, there are some advanced techniques you can explore. These techniques can help you create more complex parts, improve efficiency, and achieve even better results. One advanced technique is multi-axis machining. Most CNC machines have three axes (X, Y, and Z), but multi-axis machines have additional axes that allow the cutting tool to move in more directions. This makes it possible to cut complex 3D shapes and contours that would be difficult or impossible to achieve with a standard 3-axis machine. Multi-axis machining can be particularly useful for carbon fiber parts with complex geometries, such as aerodynamic components or structural parts with curved surfaces.

Another advanced technique is nesting. Nesting is the process of arranging multiple parts on a sheet of material in a way that minimizes waste. This is especially important when working with expensive materials like carbon fiber. Nesting software can automatically generate optimized layouts that maximize material utilization and reduce scrap. Some software can even take into account the fiber orientation of the carbon fiber to ensure that the parts are cut in the most efficient way. Vacuum bagging is another advanced technique that can improve the quality of your carbon fiber parts. Vacuum bagging involves placing the carbon fiber sheet on a mold, covering it with a plastic film, and then using a vacuum to remove the air from between the sheet and the mold. This creates a tight bond between the carbon fiber and the mold, resulting in a part with a smooth, consistent surface finish. Vacuum bagging is often used in the production of high-performance carbon fiber parts, such as aircraft components and racing car bodies. Another advanced technique is using specialized cutting tools. While diamond-coated tools are the gold standard for cutting carbon fiber, there are other types of tools that can be used for specific applications. For example, compression-style router bits are designed to prevent splintering and delamination, making them a good choice for parts with delicate edges. Oscillating knife cutters are another option for carbon fiber, especially for softer materials or pre-preg carbon fiber. Finally, consider using advanced software features. Modern CAD/CAM software offers a wide range of features that can help you optimize your carbon fiber cutting process. These include toolpath optimization, simulation, and collision detection. By using these features, you can improve the efficiency of your cutting process, reduce the risk of errors, and achieve better results. So, if you're ready to push your carbon fiber CNC skills to the next level, explore these advanced techniques. They can help you create more complex parts, improve efficiency, and achieve the high-quality results you're after.

Optimizing Toolpaths for Carbon Fiber

Alright, let's geek out a bit on toolpaths. When you're cutting carbon fiber with CNC, the path your cutting tool takes is super important. It can affect everything from cut quality to tool life to how quickly you can crank out parts. So, optimizing your toolpaths is a crucial part of the process. Think of it as planning the perfect route for a road trip – you want to get to your destination as efficiently as possible, avoiding any unnecessary detours or rough patches. One key consideration is the cutting strategy. There are several different cutting strategies you can use for carbon fiber, each with its own advantages and disadvantages. One common strategy is conventional cutting, where the cutting tool moves against the direction of the material's feed. This can produce a good surface finish, but it can also generate more heat and wear on the tool. Another strategy is climb cutting, where the cutting tool moves in the same direction as the material's feed. This can reduce heat and tool wear, but it may not produce as smooth of a surface finish. A third strategy is trochoidal cutting, where the cutting tool moves in a circular or elliptical path while also moving along the cutting path. This can be a good option for cutting complex shapes or slots, as it helps to maintain a constant chip load and reduce heat buildup. Another important factor is the cutting direction. When cutting carbon fiber, it’s generally best to cut with the fibers, rather than against them. This helps to prevent splintering and delamination. If you’re cutting a part with complex fiber orientations, you may need to adjust your toolpath to follow the fiber direction as closely as possible. The depth of cut is another parameter to consider. A deeper cut can remove material more quickly, but it can also generate more heat and stress on the tool. A shallower cut may take longer, but it can produce a cleaner finish and reduce tool wear. It’s often a good idea to use a series of shallow cuts, rather than one deep cut, especially for thicker carbon fiber. Finally, consider using toolpath optimization software. Modern CAD/CAM software offers a variety of features that can help you optimize your toolpaths for carbon fiber. These include automatic toolpath generation, simulation, and collision detection. By using these features, you can create more efficient toolpaths, reduce the risk of errors, and achieve better results. So, take the time to optimize your toolpaths for carbon fiber, and you’ll be rewarded with cleaner cuts, longer tool life, and faster production times.

Understanding Carbon Fiber Layup for CNC Cutting

Okay, let's dive into the world of carbon fiber layup. Before you even think about cutting carbon fiber with CNC, you need to understand how the material itself is constructed. Carbon fiber isn't just one thing – it's a composite material made up of layers of carbon fibers held together by a resin matrix. The way these layers are arranged, or
