Build 3D Laser Cut Models: A Step-by-Step Guide

So, you're eager to dive into the exciting world of 3D laser cut models, huh? Awesome! Whether you're a seasoned maker or just starting your journey, this guide will walk you through the entire process, from initial design to the final, satisfying click of the last piece fitting into place. We’ll cover everything you need to know to build amazing 3D laser cut models, transforming your digital designs into tangible, intricate creations. Laser cutting opens up a universe of possibilities for crafting personalized gifts, architectural models, complex art pieces, and even functional prototypes. Guys, get ready to unleash your creativity and transform your ideas into reality.

Understanding the Basics of Laser Cutting for 3D Models

Before we get to the nitty-gritty of designing and assembling, let's quickly cover the fundamentals of laser cutting. Laser cutting is a fabrication process that uses a high-powered laser beam to precisely cut materials. In the context of 3D models, this typically involves cutting 2D parts from sheet materials, which are then assembled to create a three-dimensional structure. The precision offered by laser cutting allows for intricate designs and tight tolerances, making it ideal for complex 3D models. You'll primarily be working with materials like wood (plywood, MDF), acrylic, or cardboard. Each material has its unique properties and will impact the final look and feel of your model. For example, wood offers a natural aesthetic and can be easily painted or stained, while acrylic provides a clean, modern look and is available in various colors. Understanding the properties of different materials is the first step in selecting the right material for your 3D laser cut models.

Key Considerations for Laser Cutting

When planning your 3D laser cut model, there are several key factors to keep in mind. First, material thickness plays a crucial role. The laser can only cut through materials up to a certain thickness, which depends on the laser's power and the material itself. Thicker materials may require multiple passes or a more powerful laser. Second, material properties like hardness, density, and melting point will affect the cutting process. Some materials may char or melt during cutting, requiring adjustments to the laser settings. Third, kerf, which is the width of the material removed by the laser beam, needs to be accounted for in your design. Failing to compensate for kerf can result in parts that don't fit together properly. Finally, consider the grain direction of the material, especially with wood. Cutting along the grain is generally easier than cutting against it, and the grain direction can also affect the strength and appearance of the finished model. Ignoring these factors can lead to complications during assembly and may even compromise the structural integrity of your model.

Choosing the Right Software for Your 3D Laser Cut Model

Selecting the appropriate software is paramount for designing your 3D laser cut model. You'll need software capable of creating 2D vector designs, which are the standard for laser cutting. There are many software options available, ranging from free and open-source programs to professional-grade suites. Popular choices include: Inkscape (free and open-source), Adobe Illustrator (paid, industry standard), CorelDRAW (paid), and Fusion 360 (free for personal use, CAD software with 2D design capabilities). Each software has its strengths and weaknesses, so it's essential to choose one that aligns with your skill level and project requirements. For beginners, Inkscape is an excellent starting point due to its free availability and extensive online resources. Adobe Illustrator and CorelDRAW offer more advanced features and are often preferred by professionals, while Fusion 360 is particularly well-suited for designing functional models with mechanical components. The ideal software will allow you to efficiently create precise 2D designs, export them in a compatible format (typically SVG or DXF), and manage the intricate details of your 3D model's components. Learning to use the software effectively is a crucial step in mastering the art of 3D laser cut modeling. The right software is not just a tool; it's your creative companion in bringing your ideas to life. Spend some time exploring different options and choose the one that feels most intuitive and powerful for your workflow.

Designing Your 3D Model for Laser Cutting

Now for the fun part: designing your 3D model! This is where your creativity shines. However, designing for laser cutting requires a slightly different approach compared to traditional 3D modeling. You'll essentially be creating a series of 2D parts that interlock to form a 3D structure. Think of it like a puzzle – each piece needs to be carefully designed to fit perfectly with its neighbors.

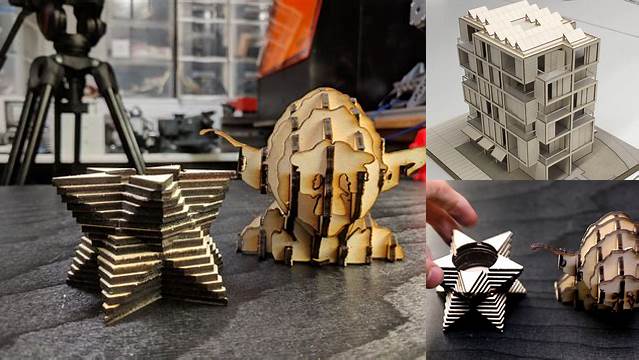

Breaking Down Your 3D Model into 2D Parts

The key to successful laser-cut 3D models lies in effectively deconstructing your design into 2D components. One common technique is slicing, where you imagine your 3D model being sliced into thin layers, each of which can be laser-cut from a sheet of material. The thickness of the slices will depend on the material you're using and the desired level of detail. Another approach is to create interlocking parts that slot together, often using tabs and slots. This method is particularly useful for creating strong and stable structures. When designing your parts, remember to account for the material thickness and kerf. You'll need to ensure that the slots are slightly wider than the material thickness to allow for a snug fit, and the tabs should be designed to compensate for the material removed by the laser. Experiment with different techniques and consider the aesthetic and structural requirements of your model to determine the most appropriate approach. Breaking down your model into manageable 2D parts is not just a technical necessity; it's an opportunity to explore creative solutions and push the boundaries of what's possible with laser cutting. This phase requires patience and attention to detail, but the results are well worth the effort. Visualize how each part interacts with the others, and you'll be well on your way to creating a stunning 3D laser-cut masterpiece. Remember, the art of deconstruction is the foundation of 3D construction in the world of laser cutting.

Incorporating Joints and Connectors for Assembly

Joints and connectors are the unsung heroes of 3D laser cut models. They're what hold everything together, so careful design is crucial. Common types of joints include tab-and-slot joints, finger joints, and dovetail joints. Tab-and-slot joints are the simplest and most widely used, involving tabs on one part that fit into slots on another. Finger joints offer greater strength due to the increased surface area for gluing. Dovetail joints are known for their exceptional strength and are often used in woodworking, but they can also be adapted for laser cutting. When designing joints, consider the material thickness, kerf, and the overall strength and stability required for your model. The fit should be snug but not too tight, allowing for easy assembly without compromising the structural integrity. For larger models, you might also consider using additional connectors like screws or glue for added strength. Experiment with different joint designs to find what works best for your project. Don't underestimate the importance of testing your joints before cutting all the parts. A small-scale prototype can save you a lot of time and material in the long run. Remember, the joints are the backbone of your 3D model, so investing time in their design is essential for creating a durable and visually appealing final product. A well-designed joint is not just a connection; it's a testament to the precision and artistry of laser cutting.

Optimizing Your Design for Laser Cutting

Optimizing your design is crucial for achieving clean cuts and efficient use of material. One of the most important aspects is nesting, which involves arranging the parts as close together as possible on the sheet material to minimize waste. Software like Inkscape and Deepnest can automate this process, saving you time and material. Another key consideration is cut order. The laser cutter typically cuts paths in the order they appear in the design file, so it's essential to optimize this order to prevent parts from shifting during cutting. Generally, it's best to cut inner details before outer contours. Venting is another important factor, especially when working with materials like acrylic that can produce fumes. Ensure your design allows for adequate airflow to prevent smoke from obscuring the laser's path and affecting the cut quality. Finally, consider the engraving capabilities of your laser cutter. You can add intricate details and textures to your model by engraving the surface of the material. However, remember that engraving takes time, so use it judiciously. Optimizing your design for laser cutting is not just about saving time and material; it's about enhancing the overall quality and precision of your final product. It's a blend of technical skill and artistic sensibility, ensuring that your design translates seamlessly from the digital realm to the physical world. Every line, curve, and corner should be meticulously considered to maximize the potential of the laser cutting process.

Preparing Your Files for Laser Cutting

Once your design is finalized, you'll need to prepare your files for the laser cutter. This involves exporting your design in a compatible format and setting the correct parameters for cutting.

Exporting Your Design in the Correct Format (SVG, DXF, etc.)

The first step in preparing your files for laser cutting is to export your design in a compatible format. The two most common formats are SVG (Scalable Vector Graphics) and DXF (Drawing Exchange Format). SVG is an XML-based vector image format that's widely supported by laser cutting software and is often preferred for its ability to retain intricate details and smooth curves. DXF, originally developed by Autodesk for AutoCAD, is another popular format, particularly for technical drawings and CAD designs. The choice between SVG and DXF often depends on the specific software you're using and the complexity of your design. Some laser cutting software may also support other formats like AI (Adobe Illustrator) or EPS (Encapsulated PostScript), but SVG and DXF are the most universally accepted. When exporting your design, ensure that all lines are converted to paths or outlines, as the laser cutter needs vector paths to follow. Avoid using raster images or embedded objects, as these won't be interpreted correctly. It's also a good practice to simplify your design by removing any unnecessary lines or points, which can reduce file size and processing time. Exporting your design in the correct format is a critical step in the laser cutting workflow. It's the bridge between your digital creation and the physical realization of your 3D model. A correctly formatted file ensures that the laser cutter can accurately interpret your design, resulting in precise and clean cuts.

Setting the Correct Parameters (Power, Speed, Passes)

Setting the correct parameters for your laser cutter is crucial for achieving optimal results. The main parameters you'll need to adjust are power, speed, and number of passes. Power determines the intensity of the laser beam, speed controls how fast the laser moves across the material, and the number of passes specifies how many times the laser will trace the same path. The ideal settings will vary depending on the material you're using, its thickness, and the desired cut quality. As a general rule, thicker materials require higher power and slower speeds. However, using excessive power can lead to burning or charring, while a speed that's too slow can cause the material to overheat. Multiple passes at lower power and speed can sometimes produce cleaner cuts than a single pass at high power. It's always a good idea to test your settings on a scrap piece of material before cutting your final design. This allows you to fine-tune the parameters and avoid wasting material. Laser cutting software typically provides presets for common materials, but these should be used as a starting point rather than a definitive solution. The perfect parameters are a delicate balance, a sweet spot that yields clean cuts, minimal material distortion, and efficient use of your laser cutter. Mastering the art of setting these parameters is a key skill for any laser cutting enthusiast. It's a blend of technical know-how and hands-on experimentation, a constant pursuit of the perfect cut.

Understanding Kerf and Compensation

As we touched on earlier, kerf is the width of the material removed by the laser beam during cutting. This seemingly small detail can have a significant impact on the accuracy and fit of your 3D model, especially when dealing with intricate designs and tight tolerances. Failing to compensate for kerf can result in parts that don't fit together properly, leading to frustration and wasted material. The amount of kerf will vary depending on the material, laser power, and lens used, but it typically ranges from 0.05mm to 0.2mm. To compensate for kerf, you'll need to adjust your design by adding half the kerf value to the dimensions of internal features (like slots) and subtracting it from the dimensions of external features (like tabs). This ensures that the final cut parts have the correct dimensions. Some software offers built-in kerf compensation tools, which can automate this process. However, it's still important to understand the underlying principles and double-check your design to ensure accuracy. A little bit of kerf can cause big problems if left unaddressed, turning your perfectly designed parts into a frustrating puzzle. Understanding and compensating for kerf is a hallmark of a skilled laser cutter, a testament to their attention to detail and commitment to precision. It's a subtle but crucial aspect of the craft, a bridge between the digital design and the physical reality.

Assembling Your 3D Laser Cut Model

With all your parts cut and ready, it's time to assemble your 3D masterpiece! This is where your patience and attention to detail will truly pay off. A well-designed model should fit together snugly, but you may need some extra tools and techniques to achieve a flawless result.

Tips and Tricks for Smooth Assembly

Smooth assembly is the culmination of all your hard work, the moment when your 2D parts transform into a tangible 3D creation. To ensure a seamless assembly process, start by laying out all your parts and familiarizing yourself with the assembly sequence. A detailed assembly diagram or instructions can be invaluable, especially for complex models. Before starting, remove any protective masking from the parts and gently clean any char or debris from the edges. When fitting parts together, apply even pressure and avoid forcing anything. If a joint is too tight, use a file or sandpaper to slightly adjust the fit. For larger models, consider using clamps or weights to hold parts in place while the glue dries. Speaking of glue, choose the right adhesive for your material. Wood glue is ideal for wood, while acrylic cement works best for acrylic. Apply glue sparingly and wipe away any excess to avoid unsightly drips. Patience is key during assembly. Take your time, work methodically, and celebrate each successful connection. A well-executed assembly is not just about putting the pieces together; it's about bringing your design to life, giving it form and substance. It's the final act in a creative process, the satisfying click of the last piece falling into place. So, embrace the challenge, enjoy the process, and watch your 3D laser-cut model take shape before your eyes. Remember, the journey from design to assembly is a testament to your creativity and craftsmanship.

Using Glue and Other Adhesives Effectively

Glue is often the unsung hero of 3D laser cut models, providing the strength and stability needed to hold everything together. However, using glue effectively is an art in itself. The first step is to choose the right adhesive for your material. Wood glue (PVA) is an excellent choice for wood and MDF, providing a strong, permanent bond. Acrylic cement, also known as solvent cement, is specifically designed for bonding acrylic and creates a virtually invisible joint by melting the surfaces together. For other materials, such as cardboard or paper, a general-purpose craft glue may suffice. When applying glue, the key is to use it sparingly. Too much glue can create a messy appearance and weaken the joint, while too little may not provide sufficient bonding. Apply a thin, even layer of glue to the joining surfaces and press the parts together firmly. Use clamps, weights, or tape to hold the parts in place while the glue dries. Wipe away any excess glue immediately with a damp cloth or paper towel to prevent it from hardening and leaving a residue. Allow the glue to dry completely before applying any stress to the joint. The drying time will vary depending on the type of glue and the environmental conditions, so refer to the manufacturer's instructions. Mastering the art of gluing is a crucial skill for any 3D laser cut model enthusiast. It's the invisible force that holds your creations together, the silent partner in your artistic endeavors. So, choose your glue wisely, apply it with precision, and let it work its magic.

Finishing Touches and Post-Processing

Once your model is assembled, it's time for the finishing touches. This is where you can add those extra details that elevate your creation from a simple model to a true work of art. The first step is to inspect your model for any imperfections, such as gaps, rough edges, or glue residue. Use sandpaper or a file to smooth any rough edges and remove any excess glue. If necessary, you can fill small gaps with wood filler or acrylic sealant. For wooden models, consider applying a finish to protect the wood and enhance its appearance. Paint, stain, varnish, and lacquer are all viable options, depending on the desired look and feel. Apply the finish in thin, even coats, allowing each coat to dry completely before applying the next. For acrylic models, you can polish the surface to a high shine using a plastic polish. You can also add decorative elements, such as paint, decals, or engravings, to customize your model. Consider adding lighting elements, such as LEDs, to create a dramatic effect. The finishing touches are your opportunity to personalize your 3D laser cut model, to infuse it with your unique style and vision. It's the final brushstroke on a masterpiece, the culmination of your creative journey. So, take your time, pay attention to detail, and let your imagination run wild. The result will be a stunning 3D model that you can be proud to display.

Conclusion

Building 3D laser cut models is a rewarding and creative process. By understanding the basics of laser cutting, mastering the design process, and paying attention to the details of assembly and finishing, you can create stunning and intricate models that showcase your skills and imagination. So go ahead, guys, experiment, explore, and have fun bringing your ideas to life in three dimensions! The world of 3D laser cut models is vast and exciting, waiting for you to make your mark. The possibilities are as limitless as your creativity. So, embrace the challenge, learn from your experiences, and create something amazing. Happy making!
