Best Free Software For 3018 CNC Router: Beginner's Guide

So, you've got a 3018 CNC router and you're ready to make some cool stuff! But hold on, you need the right software to make that happen. Good news, guys! There's a ton of free software out there perfect for your 3018. This guide is gonna break down everything you need to know, from design to cutting.

1. Understanding Free CNC Software Options

Okay, let's dive into the world of free CNC software. There are tons of options available, each with its own strengths and weaknesses. For your 3018 CNC router, you'll typically need two main types of software: CAD (Computer-Aided Design) software for creating your designs and CAM (Computer-Aided Manufacturing) software for converting those designs into instructions that your router can understand (G-code). Many free software packages combine both CAD and CAM functionalities, while others specialize in one or the other. When choosing, consider your experience level. Some free software options are more beginner-friendly, with intuitive interfaces and helpful tutorials, while others are geared towards more experienced users who need advanced features and customization options. It's also essential to think about the types of projects you plan to tackle. Are you mainly interested in simple 2D shapes, or do you want to create complex 3D models? This will influence the features you need in your software. Finally, make sure the free software you choose is compatible with your 3018 CNC router's controller board. Most 3018s use GRBL, so compatibility with GRBL is key.

2. Free CAD Software for 3018 CNC Router Design

For designing your projects, you'll need CAD software. Luckily, there are some excellent free options out there. One popular choice is FreeCAD, a powerful and versatile parametric 3D CAD modeler. It's open-source and can handle everything from simple 2D drawings to complex 3D models. The learning curve can be a bit steep, but there's a huge community and tons of tutorials available online. Another great free software option is DesignSpark Mechanical. This software is known for its ease of use, making it perfect for beginners. It allows you to create 3D models by directly manipulating shapes, rather than relying on parametric constraints. For 2D designs, consider Inkscape. While it's primarily a vector graphics editor, it can be used to create designs for your CNC router. It's also great for creating logos and other artwork. LibreCAD is another strong contender for 2D CAD, offering a familiar interface for those used to AutoCAD. It's lightweight and efficient, making it a good choice for older computers. Remember to export your designs in a format that your CAM software can understand, such as DXF or SVG.

3. Free CAM Software for Generating G-Code

Once you have your design, you need to convert it into G-code, which your 3018 CNC router can understand. That's where CAM software comes in. A popular free software choice is Easel by Inventables. It's a web-based CAM software that's incredibly easy to use, especially for beginners. You can import your designs, set up your cutting parameters, and generate G-code all within your browser. It even has built-in design tools, so you can create simple projects directly in Easel. Another option is GRBL Candle. While not strictly CAM software, it's a G-code sender that's widely used with 3018 CNC routers. It allows you to load your G-code files and send them to your router. It also has some basic visualization tools to help you see what your router will be doing. For more advanced users, FreeCAD's Path workbench can be used for CAM. While it's more complex than Easel, it offers a lot more control over your toolpaths. You can define different cutting strategies, optimize your toolpaths for speed and efficiency, and even simulate the cutting process before you start machining. Camotics is a free, open-source CNC simulator that allows you to test your G-code programs before running them on your 3018 CNC router. This can help you catch errors and prevent costly mistakes. Always double-check your G-code before running it on your machine.

4. GRBL Control Software for 3018 CNC Routers

GRBL is the firmware that controls your 3018 CNC router. To send commands to GRBL, you need a GRBL control software. Universal Gcode Sender (UGS) is a popular and reliable option. It's a cross-platform Java application that allows you to connect to your router, send G-code, and monitor the cutting process. It also has some advanced features, such as visualizing the toolpath and manually controlling the axes. GRBL Candle (mentioned earlier) is another excellent choice. It's lightweight and easy to use, making it perfect for beginners. It offers a simple interface for sending G-code and controlling your router. bCNC is a more advanced GRBL control software that offers a wide range of features, including autoleveling, camera integration, and tool probing. It's a good choice for users who want more control over their CNC router. No matter which GRBL control software you choose, make sure it's compatible with your operating system and that you have the correct drivers installed for your CNC router's controller board.

5. Setting Up Your Software Workflow for 3018 CNC

To get the most out of your 3018 CNC router, it's important to establish a smooth software workflow. This involves choosing the right software for each stage of the process, from design to cutting. Start by designing your project in CAD software, such as FreeCAD or DesignSpark Mechanical. Export your design in a format that your CAM software can understand, such as DXF or SVG. Next, import your design into your CAM software, such as Easel or FreeCAD's Path workbench. Define your cutting parameters, such as the tool diameter, cutting depth, and feed rate. Generate your G-code file. Then, use GRBL control software, such as Universal Gcode Sender or GRBL Candle, to send the G-code to your CNC router. Before running the G-code, always double-check it in a simulator like Camotics to catch any errors. Finally, run the G-code on your CNC router and watch your design come to life! This workflow may seem complicated at first, but with practice, it will become second nature.

6. Troubleshooting Common Software Issues

Even with the best software, you might run into some issues. One common problem is incorrect G-code, which can cause your CNC router to move in unexpected ways. Always double-check your G-code before running it, and use a simulator to catch any errors. Another common issue is communication problems between your computer and your CNC router. Make sure you have the correct drivers installed for your CNC router's controller board, and that your GRBL control software is properly configured. If you're having trouble connecting to your router, try restarting your computer and your CNC router. Sometimes, the problem can be as simple as a loose connection. Check all the cables connecting your computer to your CNC router. If you're still having problems, consult the documentation for your software and your CNC router. There are also many online forums and communities where you can ask for help.

7. Optimizing Cutting Parameters for Best Results

To get the best results from your 3018 CNC router, it's important to optimize your cutting parameters. This includes the tool diameter, cutting depth, feed rate, and spindle speed. The optimal cutting parameters will depend on the material you're cutting, the type of tool you're using, and the complexity of your design. In general, you should start with conservative cutting parameters and gradually increase them until you find the sweet spot. For example, if you're cutting wood, you might start with a shallow cutting depth and a slow feed rate. If you're cutting aluminum, you might need to use a higher spindle speed and a lower feed rate. Experiment with different cutting parameters and keep track of your results. Over time, you'll develop a good sense of what works best for different materials and tools. Always wear safety glasses when operating your CNC router, and be careful not to overheat your cutting tools.

8. Exploring Free Online Resources and Tutorials

There are tons of free online resources and tutorials available to help you learn how to use CNC software and operate your 3018 CNC router. YouTube is a great place to find video tutorials on everything from designing in FreeCAD to generating G-code in Easel. There are also many online forums and communities dedicated to CNC machining, where you can ask questions and get help from experienced users. Some popular forums include CNC Zone and GRBL's GitHub Discussions. The official documentation for your software is another valuable resource. Be sure to read through the documentation to learn about all the features and functions of the software. Many manufacturers of CNC routers also provide online resources and tutorials for their products. Check the manufacturer's website for helpful information. Don't be afraid to experiment and try new things. The best way to learn is by doing. With practice, you'll become a CNC expert in no time!

9. Comparing Different Free CAD/CAM Software Packages

When choosing free CAD/CAM software for your 3018 CNC router, it's important to compare different packages and find the one that best suits your needs. FreeCAD is a powerful and versatile option, but it has a steep learning curve. DesignSpark Mechanical is easier to use, but it's not as feature-rich as FreeCAD. Easel is a web-based CAM software that's incredibly easy to use, but it's limited in its capabilities. GRBL Candle is a simple G-code sender that's perfect for beginners, but it doesn't have any design or CAM capabilities. Consider your experience level, the types of projects you plan to tackle, and the features you need in your software. If you're a beginner, Easel or GRBL Candle might be a good place to start. If you're an experienced user who needs advanced features, FreeCAD might be a better choice. Don't be afraid to try out different packages and see which one you like best. Most free software is free for a reason.

10. Integrating Free Software with Your 3018 CNC Workflow

Integrating free software into your 3018 CNC workflow can seem daunting, but it's achievable with a structured approach. First, ensure compatibility between your CAD, CAM, and control software. For instance, FreeCAD (CAD) can export designs in DXF format, which Easel (CAM) can import. Then, Easel generates G-code that Universal Gcode Sender (UGS) can transmit to your 3018. Next, standardize your workflow. Begin with design in CAD, then move to CAM for toolpath generation, and finally, use a control software to send commands to your CNC. Consistency is key. Leverage online resources to learn each software's intricacies. YouTube tutorials, forums like CNC Zone, and software documentation offer invaluable insights. Gradually introduce complexity. Start with simple 2D projects before tackling intricate 3D models. This incremental approach builds confidence and skills. Regularly back up your project files and software configurations. This safeguards against data loss and simplifies recovery in case of issues. By following these steps, you can smoothly integrate free software into your 3018 CNC workflow, unlocking your machine's potential without breaking the bank.

11. Open Source Alternatives for CNC Routing

When it comes to CNC routing, the open-source community offers a plethora of alternatives. These open-source software options provide flexibility, customization, and often, a vibrant community for support. LinuxCNC stands out as a comprehensive CNC control system capable of driving various machines, including the 3018. It supports real-time control and can handle complex machining operations. FreeCAD, already mentioned, is another valuable open-source tool for CAD and CAM tasks. Its modular design allows for extensions and customization to fit specific needs. OpenSCAD takes a unique approach, using code to define 3D models. This is ideal for parametric designs and generating complex shapes. These options not only offer cost savings but also promote collaboration and innovation. The open-source nature allows users to modify the software to meet their exact requirements, fostering a deeper understanding of CNC technology. By embracing open-source alternatives, you gain access to powerful tools and a supportive community, empowering you to push the boundaries of your CNC routing projects.

12. Best Free Software for 2D CNC Projects

For 2D CNC projects on your 3018, several free software options shine. Inkscape, a vector graphics editor, excels at creating intricate 2D designs. Its ability to export designs in SVG format, compatible with many CAM programs, makes it a versatile choice. LibreCAD offers a familiar AutoCAD-like interface for 2D drafting. It's lightweight, efficient, and ideal for precise technical drawings. Easel simplifies the entire process with its web-based platform. It combines design and CAM functionalities, making it perfect for quick and easy 2D projects. When selecting the best software, consider the complexity of your designs and your comfort level with each program. Inkscape is great for artistic designs, while LibreCAD is better for technical drawings. Easel is a user-friendly option for both. These options provide the necessary tools to bring your 2D CNC visions to life without costing you a dime. They cater to diverse needs, ensuring that you find the perfect fit for your projects.

13. Top Free Options for 3D CNC Routing

When venturing into 3D CNC routing with your 3018, having the right free software is crucial. FreeCAD emerges as a top contender, offering robust 3D modeling and CAM capabilities. Its parametric design approach allows for easy modification and precise control. MeshLab is an excellent tool for processing and editing 3D meshes, essential for preparing models for CNC routing. Blender, while primarily a 3D modeling and animation software, can also be used for generating G-code for simple 3D projects. The choice of software depends on the complexity of your projects and your familiarity with 3D modeling concepts. FreeCAD is ideal for intricate designs, while MeshLab is great for refining existing 3D models. Blender can be a good option for those already familiar with its interface. These free software options empower you to tackle complex 3D CNC projects, expanding the possibilities of your 3018 CNC router.

14. Free Software for Woodworking CNC Projects

For woodworking enthusiasts using a 3018 CNC router, selecting the right free software can significantly enhance your projects. Easel offers a user-friendly interface and integrated design and CAM features, making it ideal for simple woodworking projects like signs and decorative pieces. FreeCAD, with its robust 3D modeling capabilities, allows you to create intricate wooden components for furniture or decorative items. SketchUp Free is a web-based 3D modeling tool that's easy to learn and use, perfect for visualizing your woodworking designs before cutting. The choice of software depends on the complexity of your projects and your design preferences. Easel is great for beginners, while FreeCAD and SketchUp Free offer more advanced features. These options provide the tools you need to bring your woodworking visions to life, allowing you to create beautiful and functional pieces with your CNC router.

15. Free Software for Metal CNC Machining

When venturing into metal CNC machining with your 3018, selecting the appropriate free software is essential. FreeCAD, with its powerful CAD and CAM capabilities, can handle metal projects with precision. Its ability to simulate toolpaths helps prevent errors and optimize cutting strategies. HeeksCAD/HeeksCNC is another open-source option that combines CAD and CAM functionalities, suitable for machining various metals. NC Viewer is a useful tool for visualizing G-code, allowing you to verify toolpaths and identify potential issues before running the machine. When working with metal, safety is paramount. Ensure your software supports features like toolpath simulation and collision detection. FreeCAD is a robust choice for complex metal projects, while HeeksCAD/HeeksCNC offers a streamlined workflow. NC Viewer is invaluable for G-code verification. These options empower you to tackle metal CNC machining with confidence, unlocking the potential of your 3018 for metalworking projects.

16. Free Software for PCB Milling on a CNC Router

Creating PCBs (Printed Circuit Boards) with your 3018 CNC router requires specialized free software. KiCad is a comprehensive open-source EDA (Electronic Design Automation) suite that includes PCB design and layout tools. It allows you to create Gerber files, which can then be used by CAM software to generate G-code. FlatCAM is specifically designed for PCB milling. It can import Gerber files, optimize toolpaths, and generate G-code for your CNC router. GerberView is a simple tool for viewing Gerber files, allowing you to verify your PCB designs before milling. When milling PCBs, precision is critical. Ensure your software supports features like toolpath optimization and precise control over cutting parameters. KiCad is a complete solution for PCB design, while FlatCAM focuses on the milling process. GerberView is essential for verification. These options enable you to create custom PCBs with your 3018, opening up a world of possibilities for electronics projects.

17. Understanding G-Code and Its Role

G-code is the language that your 3018 CNC router understands. It's a series of instructions that tell the machine where to move, how fast to move, and what operations to perform. Understanding G-code is crucial for troubleshooting issues and optimizing your CNC projects. G-code commands typically start with a letter followed by a number. For example, G00 is a rapid traverse command, which tells the machine to move to a specific location as quickly as possible. G01 is a linear interpolation command, which tells the machine to move in a straight line at a specified feed rate. M03 starts the spindle, and M05 stops it. CAM software generates G-code based on your design and cutting parameters. However, it's helpful to be able to read and understand G-code so you can make adjustments if necessary. There are many online resources and tutorials that can help you learn G-code. Mastering G-code empowers you to take full control of your CNC router, allowing you to fine-tune your projects and troubleshoot any issues that may arise.

18. Simulating CNC Projects Before Cutting

Simulating CNC projects before cutting is a crucial step in preventing errors and optimizing your workflow. Simulation software allows you to visualize the toolpaths and identify potential collisions or issues before running the machine. Camotics is a free, open-source CNC simulator that supports a wide range of G-code dialects. It allows you to simulate the cutting process, view the resulting part, and identify any errors in your G-code. NC Viewer is another useful tool for visualizing G-code. While it doesn't simulate the cutting process, it allows you to verify the toolpaths and identify potential issues. Before running any G-code on your CNC router, always simulate it first. This can save you time, money, and frustration by preventing costly mistakes. Simulation software provides a virtual environment to test your projects, ensuring that they run smoothly and efficiently on your 3018 CNC router.

19. Using Free Software for Laser Engraving

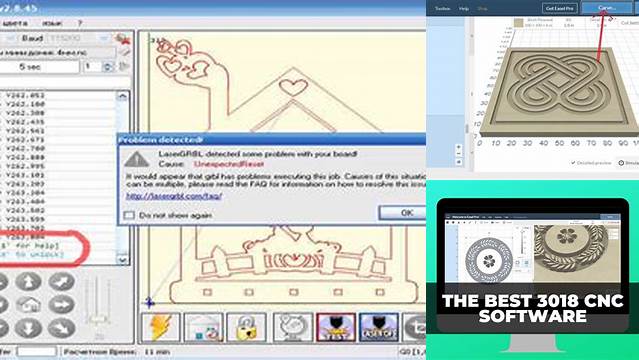

If your 3018 CNC router is equipped with a laser module, you can use free software for laser engraving. LaserGRBL is a popular open-source software specifically designed for controlling GRBL-based laser engravers. It allows you to import images, adjust laser power and speed, and generate G-code for engraving. Inkscape, with the J Tech Photonics Laser Tool plugin, can also be used for laser engraving. This plugin allows you to generate G-code directly from Inkscape, making it a seamless workflow for creating laser-engraved designs. When using a laser, safety is paramount. Always wear laser safety glasses and ensure proper ventilation. LaserGRBL is a dedicated software for laser engraving, while Inkscape offers a versatile design environment. These options enable you to create stunning laser-engraved projects with your 3018 CNC router, expanding its capabilities beyond traditional milling.

20. Converting Images to G-Code for CNC

Converting images to G-code for CNC routing allows you to create intricate designs from photographs or other raster images. Several free software options can help you with this process. Image to GCode is a simple online tool that converts images to G-code. You can upload an image, adjust the parameters, and download the G-code file. Inkscape, with the appropriate plugins, can also be used to convert images to G-code. This allows for more control over the conversion process and the ability to edit the resulting toolpaths. When converting images, consider the resolution of the image and the desired level of detail. Higher resolution images will result in more detailed G-code, but they will also take longer to process. Image to GCode offers a quick and easy solution, while Inkscape provides more control and flexibility. These options enable you to create unique CNC projects from your favorite images, adding a personal touch to your creations.

21. Autolevelling Techniques and Software

Autolevelling is a technique used to compensate for uneven surfaces when CNC routing. This ensures that your cuts are consistent, even if the material is not perfectly flat. Several software options support autolevelling. bCNC is a GRBL control software that includes autolevelling capabilities. It uses a probe to map the surface of the material and then adjusts the G-code to compensate for any variations in height. Easel Pro (paid version) also includes autolevelling features. It uses a similar probing technique to map the surface and adjust the toolpaths. Autolevelling is particularly useful when working with materials that are prone to warping or bending. It ensures that your cuts are accurate, even on imperfect surfaces. bCNC offers a free autolevelling solution, while Easel Pro provides a more integrated experience. These options enable you to achieve consistent results, even when working with challenging materials.

22. Choosing the Right Bits and Tools

Choosing the right bits and tools is crucial for achieving optimal results with your 3018 CNC router. The type of bit you need will depend on the material you're cutting and the type of cut you're making. For general-purpose cutting, a straight flute bit is a good choice. For carving intricate details, a V-bit is often used. For cutting slots, a spiral upcut or downcut bit is recommended. The diameter of the bit will also affect the cutting speed and the level of detail you can achieve. Smaller bits are better for intricate details, while larger bits are better for removing material quickly. The material of the bit is also important. High-speed steel (HSS) bits are suitable for cutting wood and plastic, while carbide bits are more durable and can be used for cutting metal. When choosing bits, consider the material you're cutting, the type of cut you're making, and the desired level of detail. Using the right bits will improve the quality of your cuts and extend the life of your tools.

23. Setting Up Your Workpiece Correctly

Setting up your workpiece correctly is essential for accurate and consistent CNC routing. The workpiece must be securely fastened to the CNC router bed to prevent it from moving during the cutting process. Several methods can be used to secure the workpiece, including clamps, tape, and screws. The best method will depend on the size and shape of the workpiece and the material it's made of. When using clamps, make sure they are tightened securely and that they are not interfering with the cutting path. Double-sided tape can be used to secure small or lightweight workpieces. Screws can be used to secure larger or heavier workpieces. When using screws, make sure they are countersunk so they don't interfere with the cutting tool. Before starting the cutting process, always double-check that the workpiece is securely fastened and that it is properly aligned with the CNC router. A properly set up workpiece will ensure accurate cuts and prevent damage to your CNC router.

24. Safe Operating Practices for CNC Routers

Safe operating practices are paramount when working with CNC routers. Always wear safety glasses to protect your eyes from flying debris. Ear protection is also recommended, as CNC routers can be quite loud. Never reach into the cutting area while the machine is running. Keep your hands and fingers away from the moving parts. Make sure the CNC router is properly grounded to prevent electrical shock. Never leave the machine unattended while it's running. If you need to leave, pause the program and turn off the spindle. Before starting any project, review the G-code to ensure it's correct and that it won't cause any collisions. Familiarize yourself with the emergency stop button and know how to use it in case of an emergency. Regularly inspect the machine for any signs of wear or damage. Replace any worn or damaged parts immediately. Following these safe operating practices will help prevent accidents and ensure a safe and enjoyable CNC routing experience.

25. Maintaining Your 3018 CNC Router

Maintaining your 3018 CNC router is crucial for ensuring its longevity and optimal performance. Regularly clean the machine to remove dust and debris. Use a vacuum cleaner or compressed air to clean the machine bed, the lead screws, and the guide rails. Lubricate the lead screws and guide rails with a light machine oil. This will help reduce friction and wear. Check the tightness of all the screws and bolts on the machine. Loose screws can cause vibrations and inaccuracies. Regularly inspect the cutting tools for any signs of wear or damage. Replace worn or damaged tools immediately. Keep the machine in a dry and clean environment. Moisture and dust can damage the electronic components. Following these maintenance tips will help keep your 3018 CNC router in top condition and ensure years of reliable service.

26. Understanding CNC Terminology

Understanding CNC terminology is essential for effective communication and problem-solving in the world of CNC machining. CAD stands for Computer-Aided Design, which is the process of creating designs using software. CAM stands for Computer-Aided Manufacturing, which is the process of converting designs into instructions that the CNC machine can understand. G-code is the programming language used to control CNC machines. Feed rate is the speed at which the cutting tool moves through the material. Spindle speed is the speed at which the cutting tool rotates. Depth of cut is the amount of material removed in each pass. Toolpath is the path that the cutting tool follows during the machining process. Zero point is the reference point from which all measurements are taken. Workpiece is the material being machined. Familiarizing yourself with these terms will help you understand the CNC process and communicate effectively with other CNC enthusiasts.

27. Optimizing Your Workspace for CNC Routing

Optimizing your workspace for CNC routing can significantly improve your efficiency and safety. Choose a location that is well-ventilated and has ample space for your CNC router and your materials. Ensure that the workspace is well-lit to provide good visibility. Keep the workspace clean and organized to prevent clutter and tripping hazards. Store your tools and materials in a designated area. Use a dust collection system to remove dust and debris from the air. This will help protect your lungs and keep your workspace clean. Provide adequate power outlets for your CNC router and other equipment. Consider using a workbench or table that is specifically designed for CNC routing. This will provide a stable and level surface for your machine. A well-organized and optimized workspace will make CNC routing more enjoyable and productive.

28. Community Support and Forums for CNC Users

Community support and forums are invaluable resources for CNC users of all skill levels. Online forums provide a platform for asking questions, sharing knowledge, and getting help with troubleshooting issues. Some popular CNC forums include CNC Zone, MyCNCUK, and Practical Machinist. These forums are filled with experienced CNC users who are willing to share their expertise. You can also find helpful information and tutorials on YouTube and other online resources. Local CNC clubs and organizations can also provide valuable support and networking opportunities. Attending CNC workshops and seminars is a great way to learn new skills and meet other CNC enthusiasts. Don't be afraid to ask for help when you need it. The CNC community is generally very supportive and welcoming. Engaging with the community will accelerate your learning and help you become a more skilled CNC user.

29. Common Mistakes to Avoid

Common mistakes to avoid when using a 3018 CNC router can save you time, money, and frustration. One common mistake is using the wrong cutting tool for the material being machined. Make sure you select the appropriate tool for the job. Another common mistake is setting the feed rate and spindle speed incorrectly. Refer to the manufacturer's recommendations for the optimal settings. Failing to secure the workpiece properly is another common mistake. Make sure the workpiece is securely fastened to the CNC router bed. Not simulating the G-code before running it on the machine can lead to costly mistakes. Always simulate the G-code to identify any potential problems. Ignoring safety precautions is a serious mistake. Always wear safety glasses and take other necessary precautions. Learning from your mistakes is part of the CNC learning process, but avoiding these common pitfalls will help you progress more quickly.

30. The Future of Free CNC Software

The future of free CNC software looks bright. As technology advances, free software is becoming more powerful and user-friendly. Open-source development is driving innovation and collaboration, resulting in a wider range of free software options. Cloud-based CNC software is becoming increasingly popular, offering accessibility and convenience. Artificial intelligence (AI) is being integrated into CNC software, enabling automated toolpath generation and optimization. As free software continues to evolve, it will become even more accessible and powerful, empowering more people to create amazing things with CNC technology. The democratization of CNC technology is being fueled by free software, making it possible for hobbyists, small businesses, and educators to access the tools they need to innovate and create.
