Acrylic CNC Cutting: A Comprehensive Guide
Are you looking to dive into the world of acrylic cutting CNC and create some amazing projects? Well, you've come to the right place! In this comprehensive guide, we're going to break down everything you need to know, from understanding the basics of CNC machines to mastering the art of cutting acrylic. Whether you're a hobbyist, a DIY enthusiast, or a professional fabricator, this article will equip you with the knowledge and skills to get started with acrylic CNC cutting. So, grab a cup of coffee, settle in, and let's get cutting!

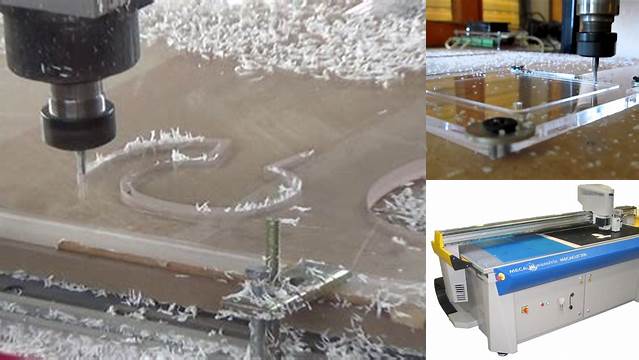

What is CNC and Why Use it for Acrylic Cutting?
First things first, let's talk about what CNC actually means. CNC stands for Computer Numerical Control. It's essentially a computerized manufacturing process where pre-programmed software and code control the movement of production equipment. Think of it as a super precise and automated way to cut, carve, and shape materials. Unlike manual cutting methods, CNC machines offer unparalleled accuracy, repeatability, and efficiency.
When it comes to acrylic cutting, CNC machines are a game-changer. Acrylic, also known as Plexiglas or Lucite, is a versatile material prized for its clarity, durability, and ease of fabrication. However, it can be tricky to cut by hand. That's where CNC routers come in! These machines use rotary cutting tools to precisely remove material, allowing you to create intricate designs, sharp edges, and smooth finishes on acrylic sheets. With CNC acrylic cutting, you can achieve complex shapes and geometries that would be nearly impossible with traditional methods.
The benefits of using a CNC for acrylic cutting are numerous. Precision is paramount, as CNC machines can cut acrylic with tolerances of just a few thousandths of an inch. This level of accuracy is essential for projects that require tight fits and clean lines. Repeatability is another key advantage; once you've dialed in your settings, you can reproduce the same part over and over again with consistent results. This is particularly valuable for batch production or creating multiple identical components. Efficiency is also a major draw, as CNC machines can cut acrylic much faster than manual methods, saving you time and labor. Plus, CNC routers can handle a wide range of acrylic thicknesses and sizes, making them incredibly versatile for a variety of projects.
But the benefits don't stop there. CNC cutting also minimizes waste, as the machine can nest parts closely together on a sheet of acrylic, maximizing material utilization. This not only saves you money but also reduces your environmental impact. Furthermore, CNC machines can create complex 3D shapes and engravings in acrylic, opening up a world of creative possibilities. From custom signage and displays to architectural models and artistic sculptures, CNC acrylic cutting empowers you to bring your ideas to life with stunning precision and detail.
Choosing the Right CNC Machine for Acrylic
Okay, so you're sold on the idea of using a CNC for acrylic cutting – great! But now comes the big question: which CNC machine should you choose? With so many options on the market, it can feel a bit overwhelming. Fear not, guys! We're here to guide you through the process and help you find the perfect machine for your needs.
First, let's talk about the different types of CNC machines commonly used for acrylic cutting. The most popular choice is the CNC router, which uses a rotating cutting tool to remove material. CNC routers are versatile, powerful, and relatively affordable, making them a great option for both hobbyists and professionals. Another type of CNC machine is the laser cutter, which uses a focused laser beam to cut or engrave materials. Laser cutters offer incredible precision and are ideal for intricate designs and fine details. However, they can be more expensive than CNC routers and may not be suitable for thicker acrylic sheets.
When selecting a CNC machine for acrylic cutting, there are several key factors to consider. Cutting area is a crucial specification, as it determines the maximum size of the acrylic sheet you can work with. If you plan to create large-scale projects, you'll need a machine with a larger cutting area. Power is another important factor, as it affects the machine's ability to cut through thicker acrylic. A more powerful machine will generally cut faster and cleaner, especially on thicker materials. Spindle speed is also worth considering, as it influences the quality of the cut. Higher spindle speeds are typically better for acrylic, as they reduce the risk of melting or chipping.
In addition to these technical specifications, you'll also want to think about the machine's construction and rigidity. A sturdy and well-built machine will vibrate less, resulting in smoother and more accurate cuts. Software compatibility is another crucial aspect; make sure the CNC machine's control software is compatible with your CAD/CAM software of choice. You'll also want to consider the machine's ease of use and the availability of support and training resources. A user-friendly machine with good documentation will save you time and frustration in the long run.
Finally, don't forget to factor in your budget. CNC machines range in price from a few hundred dollars for a small desktop model to tens of thousands of dollars for a professional-grade machine. Determine how much you're willing to spend and then look for a machine that meets your needs within that budget. Remember, it's often better to invest in a quality machine that will last for years rather than opting for the cheapest option, which may end up costing you more in the long run due to maintenance and repairs.
Essential Tools and Software for Acrylic CNC Cutting
Alright, you've got your CNC machine – awesome! But before you start cutting, you'll need to gather the essential tools and software. Think of these as the supporting cast that will help you bring your acrylic cutting visions to life. Don't worry, we'll walk you through everything you need to get started.
First up, let's talk about cutting tools. For CNC routers, the most common type of cutting tool is the end mill. End mills come in various shapes, sizes, and materials, each suited for different cutting tasks. For acrylic, you'll want to use specialized acrylic cutting end mills, which are designed to produce clean cuts with minimal chipping or melting. These end mills typically have a polished flute and a sharp cutting edge. You may also want to invest in a compression end mill, which has both upcut and downcut flutes, to further reduce chipping on the top and bottom surfaces of the acrylic.
In addition to end mills, you'll need a way to secure the acrylic sheet to the CNC machine's table. This is crucial for preventing movement and ensuring accurate cuts. Common workholding methods for acrylic include double-sided tape, clamps, and vacuum hold-down systems. Double-sided tape is a simple and inexpensive option for smaller projects, while clamps provide a more secure hold for larger or thicker sheets. Vacuum hold-down systems use suction to hold the acrylic in place, offering the most consistent and reliable workholding. When choosing a workholding method, consider the size and thickness of your acrylic sheets, as well as the complexity of your designs.
Now, let's move on to software. To operate a CNC machine, you'll need two main types of software: CAD (Computer-Aided Design) software and CAM (Computer-Aided Manufacturing) software. CAD software is used to create the 2D or 3D designs that you want to cut, while CAM software is used to generate the toolpaths – the instructions that tell the CNC machine how to move and cut. There are many CAD/CAM software options available, ranging from free and open-source programs to professional-grade suites. Some popular choices for acrylic CNC cutting include Autodesk Fusion 360, Vectric VCarve Pro, and Easel. When selecting CAD/CAM software, consider your budget, the complexity of your designs, and the software's ease of use.
Beyond cutting tools, workholding, and software, there are a few other essential tools and supplies you'll need for acrylic CNC cutting. Safety glasses are a must-have to protect your eyes from flying debris. You'll also want a dust collection system to remove acrylic chips and dust from the cutting area, which can improve visibility and reduce the risk of fire. A deburring tool is helpful for removing sharp edges and burrs from the cut acrylic pieces. And finally, don't forget cleaning supplies, such as microfiber cloths and acrylic cleaner, to keep your acrylic projects looking their best.
Step-by-Step Guide to Cutting Acrylic with a CNC Machine
Okay, we've covered the basics of CNC machines, tool selection, and software. Now, let's get to the fun part: actually cutting acrylic! This step-by-step guide will walk you through the process, from design to finished product. Whether you're a complete newbie or have some CNC experience, you'll find valuable tips and techniques to help you achieve professional-quality results.
Step 1: Design Your Project: The first step in any CNC project is to create a design. This can be done using CAD software, as we discussed earlier. Start by sketching out your idea and then translate it into a digital design. When designing for acrylic CNC cutting, keep in mind the material's properties and limitations. Acrylic is relatively brittle, so avoid sharp corners and thin features that could easily break. Also, consider the thickness of the acrylic sheet you'll be using and design accordingly.
Step 2: Generate Toolpaths: Once you have your design, the next step is to generate toolpaths using CAM software. Toolpaths are the instructions that tell the CNC machine how to move and cut the acrylic. In your CAM software, you'll need to specify the cutting tool you'll be using, the cutting speed, the depth of cut, and other parameters. For acrylic, it's generally recommended to use a high spindle speed and a slow feed rate to minimize melting and chipping. You'll also want to choose a cutting strategy that produces clean cuts, such as a climb milling strategy. The goal is to create a set of toolpaths that efficiently remove the material while leaving a smooth, finished edge.
Step 3: Set Up the CNC Machine: Now it's time to set up your CNC machine. Start by securing the acrylic sheet to the machine's table using your chosen workholding method. Make sure the acrylic is flat and securely held in place to prevent movement during cutting. Next, install the appropriate cutting tool in the spindle and set the correct cutting depth. Double-check all your settings and make sure everything is properly aligned. Before starting the cut, it's a good idea to run a dry run – a practice run without the cutting tool engaged – to verify that the toolpaths are correct and there are no collisions.
Step 4: Cut the Acrylic: Once you're confident in your setup, it's time to start cutting! Turn on the CNC machine and load the toolpath file. Keep a close eye on the cutting process, monitoring the machine's performance and making any necessary adjustments. If you notice any issues, such as excessive vibration or melting, pause the machine and troubleshoot the problem. With patience and attention to detail, you'll be amazed at the intricate shapes and designs you can create with CNC acrylic cutting. If possible, use mist coolant. This will help cool the bit and lubricate the cut. It will produce a much cleaner cut and help keep your bits sharp!
Step 5: Finishing and Polishing: After the cutting is complete, there may be some minor imperfections, such as burrs or sharp edges. Use a deburring tool to remove any sharp edges and smooth the cut surfaces. For a polished finish, you can use a flame polishing technique or buff the acrylic with a polishing compound. With a little bit of finishing work, your acrylic projects will look professional and polished. There are also liquid polishes for acrylic that will make them look amazing!
Tips and Tricks for Successful Acrylic CNC Cutting
So, you've mastered the basics of acrylic CNC cutting – congratulations! But like any skill, there's always room for improvement. In this section, we're going to share some insider tips and tricks that will help you take your acrylic cutting to the next level. These tips will help you achieve cleaner cuts, minimize chipping and melting, and optimize your workflow for maximum efficiency.
Choosing the Right Cutting Tool: As we mentioned earlier, using specialized acrylic cutting end mills is crucial for achieving clean cuts. But what exactly makes these end mills special? They typically have a high helix angle and a polished flute, which helps to evacuate chips and reduce friction. When selecting an end mill, consider the thickness of the acrylic you'll be cutting and choose a tool with an appropriate cutting length. A general rule of thumb is to use an end mill with a cutting length that's at least twice the thickness of the acrylic. Also, it's often better to use a smaller diameter end mill for intricate designs and fine details.
Optimizing Cutting Parameters: The cutting parameters – such as spindle speed, feed rate, and depth of cut – play a critical role in the quality of the cut. For acrylic, it's generally recommended to use a high spindle speed (e.g., 18,000-24,000 RPM) and a slow feed rate (e.g., 10-20 inches per minute). This combination helps to minimize melting and chipping. The depth of cut will depend on the thickness of the acrylic and the power of your CNC machine. Start with a shallow depth of cut and gradually increase it until you find the optimal setting. Remember, it's always better to make multiple passes with a shallower depth of cut than to try to cut too much material in a single pass.
Minimizing Chipping and Melting: Chipping and melting are common issues when cutting acrylic, but they can be minimized with the right techniques. One key strategy is to use a sharp cutting tool and replace it regularly. A dull end mill will generate more heat and friction, increasing the risk of melting and chipping. Another tip is to use a climb milling strategy, which cuts against the direction of the material's feed. Climb milling produces a cleaner cut and reduces the likelihood of chipping. Additionally, you can try using a mist coolant system to cool the cutting tool and lubricate the cut, further minimizing melting.
Workholding Techniques: Proper workholding is essential for achieving accurate cuts and preventing material movement. As we discussed earlier, there are several workholding methods you can use for acrylic, including double-sided tape, clamps, and vacuum hold-down systems. When using double-sided tape, make sure to apply it evenly across the acrylic sheet and press it firmly onto the CNC machine's table. When using clamps, position them carefully to avoid obstructing the cutting tool's path. Vacuum hold-down systems provide the most secure and consistent workholding, but they require a dedicated vacuum pump and a special table.
Finishing Techniques: After the cutting is complete, there are several finishing techniques you can use to enhance the appearance of your acrylic projects. Deburring is essential for removing sharp edges and burrs. You can use a deburring tool, a file, or even sandpaper to smooth the edges. For a polished finish, you can use a flame polishing technique, which involves briefly passing a torch flame over the acrylic surface to melt away minor imperfections. Alternatively, you can buff the acrylic with a polishing compound and a soft cloth. With a little bit of finishing work, your acrylic projects will look professional and polished.
Common Problems and Solutions in Acrylic CNC Cutting
Even with the best equipment and techniques, you may still encounter some challenges when cutting acrylic with a CNC machine. But don't worry, guys! Every problem has a solution, and we're here to help you troubleshoot common issues and get your projects back on track. In this section, we'll address some of the most frequent problems encountered in acrylic CNC cutting and provide practical solutions to overcome them.
Chipping: As we've mentioned before, chipping is a common problem when cutting acrylic, especially on the edges of the cut. There are several factors that can contribute to chipping, including dull cutting tools, excessive feed rates, and improper cutting strategies. To minimize chipping, start by using a sharp end mill specifically designed for acrylic cutting. Ensure that your cutting tools are regularly inspected and replaced when they start to wear down, you also should be running a mist coolant system if possible. Reduce the feed rate and try using a climb milling strategy. If chipping persists, try using a compression end mill, which has both upcut and downcut flutes to reduce chipping on both the top and bottom surfaces of the acrylic. Also, ensure your workholding method is providing a secure hold on the acrylic sheet to prevent movement during cutting. Even slight vibrations can exacerbate chipping.
Melting: Melting is another common issue when cutting acrylic, particularly with thicker sheets or at higher cutting speeds. Melting occurs when the friction between the cutting tool and the acrylic generates excessive heat, causing the material to soften and melt. To prevent melting, use a high spindle speed and a slow feed rate. This allows the cutting tool to remove material efficiently without generating too much heat. You can also try using a coolant system to cool the cutting tool and lubricate the cut. A mist coolant system is particularly effective for acrylic cutting, as it provides a fine mist of coolant directly to the cutting zone. Additionally, make sure your dust collection system is working properly to remove acrylic chips and dust from the cutting area, as these can also contribute to heat buildup.
Rough Edges: Rough edges are another common problem in acrylic CNC cutting, often caused by a combination of factors such as dull cutting tools, excessive feed rates, and improper cutting parameters. To achieve smooth, clean edges, start by using a sharp end mill and ensure that your cutting tools are in good condition. Adjust your feed rate and spindle speed to optimize the cutting process for acrylic. Additionally, consider the depth of cut. A shallow depth of cut may result in a smoother edge finish compared to attempting to cut through the material in a single pass. If rough edges persist, try using a finishing pass – a light cut along the edge of the part – to remove any remaining imperfections. Use a dedicated acrylic polishing compound to bring the edges to a high gloss finish.
Inaccurate Cuts: Inaccurate cuts can be frustrating and may result from various issues, including incorrect toolpath generation, machine calibration problems, or workpiece movement during cutting. Start by verifying that your toolpaths are accurate and that your CAM software is generating the correct instructions for the CNC machine. Check your machine's calibration and alignment to ensure that it is cutting accurately. If necessary, recalibrate the machine according to the manufacturer's instructions. Proper workholding is essential to prevent workpiece movement during cutting. Make sure your acrylic sheet is securely held in place using an appropriate workholding method. If you're experiencing consistent inaccuracies, consider consulting with a CNC technician to diagnose and address any mechanical issues with your machine.
The Future of Acrylic CNC Cutting
As technology continues to evolve, the future of acrylic CNC cutting looks brighter than ever. From advancements in machine capabilities to innovative software solutions, there are many exciting developments on the horizon that will shape the way we cut and fabricate acrylic. Let's take a glimpse into the future and explore some of the key trends and innovations that are poised to revolutionize the world of acrylic CNC cutting.
Advancements in CNC Machine Technology: One of the most significant trends in the CNC industry is the continuous improvement of machine technology. CNC machines are becoming more powerful, more precise, and more versatile, enabling users to cut acrylic with greater efficiency and accuracy. High-speed CNC routers, equipped with advanced spindle technology and servo drives, can cut acrylic at faster speeds while maintaining tight tolerances. Multi-axis CNC machines, which can move the cutting tool in multiple directions simultaneously, are becoming more accessible, allowing for the creation of complex 3D shapes and intricate designs in acrylic. These advancements in machine technology are opening up new possibilities for acrylic fabrication, empowering manufacturers and hobbyists alike to push the boundaries of creativity and innovation.
Software and Automation: Software plays a crucial role in CNC cutting, and we can expect to see significant advancements in this area in the coming years. CAD/CAM software is becoming more intuitive and user-friendly, making it easier for designers and machinists to create toolpaths and optimize cutting parameters. Artificial intelligence (AI) and machine learning (ML) are being integrated into CNC software, enabling automated toolpath generation and process optimization. AI-powered software can analyze design files, material properties, and machine capabilities to generate the most efficient cutting strategies, minimizing material waste and reducing cutting time. Automation is also playing an increasingly important role in CNC acrylic cutting. Automated material handling systems, such as robotic loaders and unloaders, can streamline the cutting process and reduce the need for manual intervention. These advancements in software and automation are making CNC cutting more efficient, cost-effective, and accessible to a wider range of users.
New Materials and Applications: As CNC technology advances, we can expect to see the development of new acrylic materials with enhanced properties and capabilities. For example, impact-modified acrylics offer improved durability and resistance to breakage, making them suitable for demanding applications. Anti-scratch acrylics maintain their clarity and appearance even in harsh environments. These new materials are expanding the range of applications for acrylic CNC cutting, from aerospace and automotive components to medical devices and consumer electronics. The demand for custom acrylic parts and components is also growing across various industries, driving innovation in CNC cutting techniques and processes. CNC acrylic cutting is becoming an essential manufacturing technology for businesses that require high-quality, precisely machined parts with fast turnaround times.
Sustainability and Eco-Friendly Practices: In today's world, sustainability is a top priority, and the CNC cutting industry is no exception. Manufacturers are increasingly adopting eco-friendly practices to reduce their environmental impact. This includes using recycled acrylic materials, minimizing material waste, and implementing energy-efficient cutting processes. Waterjet cutting, a CNC cutting method that uses high-pressure water jets to cut materials, is gaining popularity as an environmentally friendly alternative to traditional machining methods. Waterjet cutting produces no heat-affected zone, generates minimal waste, and does not require the use of hazardous chemicals. As sustainability becomes more important, we can expect to see further innovation in eco-friendly CNC cutting techniques and materials.
Conclusion: Unleash Your Creativity with Acrylic CNC Cutting
Wow, we've covered a lot of ground in this ultimate guide to acrylic CNC cutting! From understanding the basics of CNC machines to mastering advanced techniques, you're now equipped with the knowledge and skills to create stunning acrylic projects. Whether you're a hobbyist, a DIY enthusiast, or a professional fabricator, CNC acrylic cutting offers endless possibilities for creativity and innovation. With its precision, versatility, and efficiency, CNC technology empowers you to bring your ideas to life with remarkable accuracy and detail.
Throughout this article, we've emphasized the importance of choosing the right CNC machine, selecting appropriate cutting tools, and optimizing cutting parameters. We've also shared valuable tips and tricks for minimizing chipping and melting, achieving smooth edges, and troubleshooting common problems. Remember, practice makes perfect, so don't be afraid to experiment and refine your techniques. The more you cut acrylic with a CNC machine, the better you'll become at it.
As we look to the future, the possibilities for acrylic CNC cutting are truly exciting. Advancements in machine technology, software, and materials are constantly pushing the boundaries of what's possible. From intricate 3D designs to large-scale architectural installations, CNC acrylic cutting is transforming the way we create and fabricate. So, unleash your creativity, embrace the power of CNC technology, and embark on your own acrylic cutting journey. The only limit is your imagination!
